Notifier IFS-2600 User Manual

IFS-2600 Fire Indicator Panel Section 4 Installation
DOC-01-009 25

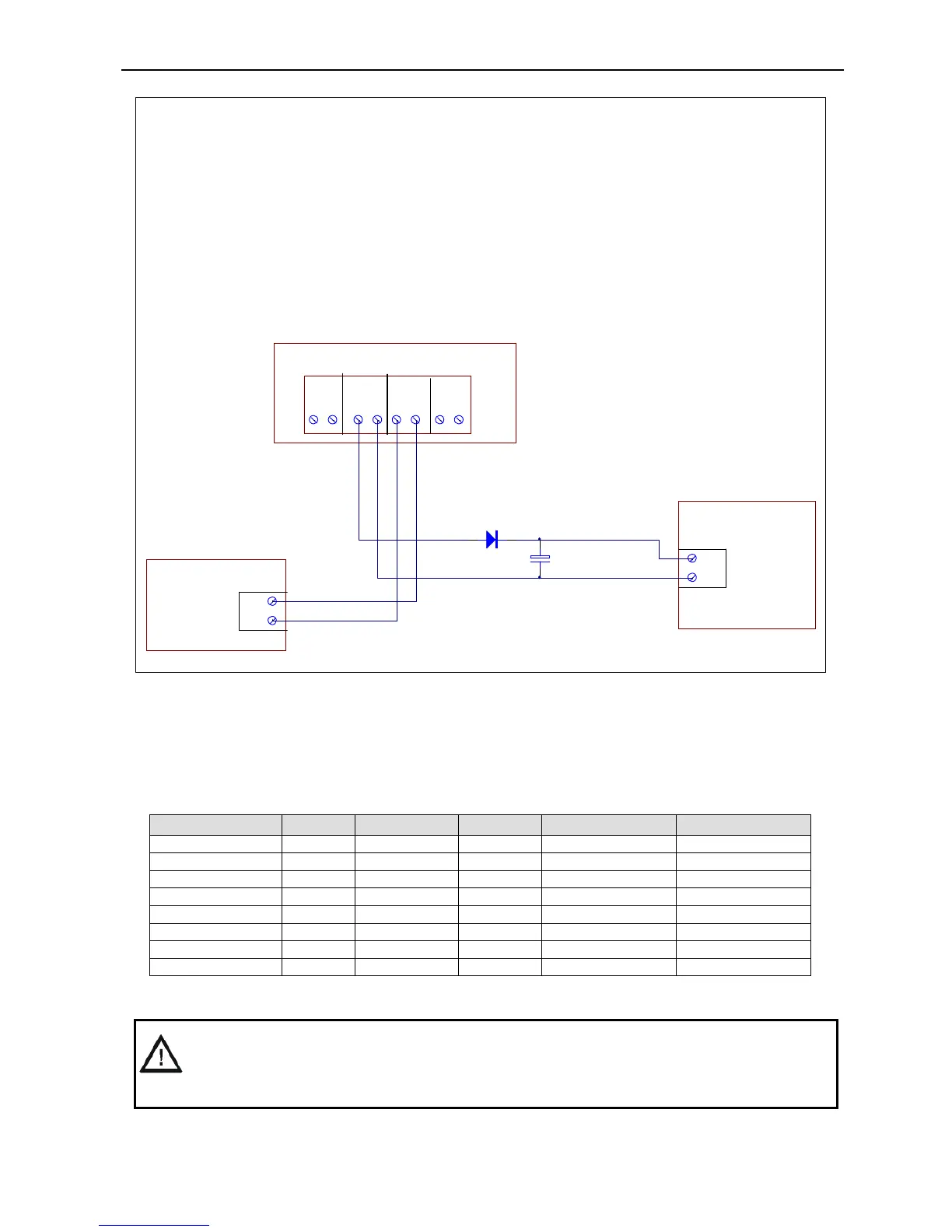

Important Notes: This applies to IFS-2005/IFS-2006 Boards without ECN09-034 modification!!
When using external power supply, JP1 link on IFS2006E must be fitted to enable external PSU
monitoring.
If this supply is used to power a NI-2008 gas module, the following additional components are required
to ensure a break free change over from the mains supply to the panel battery in case of mains fail
condition.
1. A 6A4 or P600G rectifier diode (Notifier part number #266) is to be installed in series with the external
+27V output of the IFS-2600 termination board.
2. A 3300µF 50V Electrolytic Capacitor (Notifier part number #1248) should be installed across
the +27V and 0V of the ancillary device.
4.4.3. Battery Type and Capacities
In general, any Sealed Lead Acid (SLA) Battery, or Wet Lead Acid Battery designed for stationary use is
compatible with the IFS-2600 Fire Indicator Panel. Automotive batteries must not be used. The use of
Nickel Cadmium batteries is not recommended.
Table 4-4, Battery Capacities
Manufacturer
Type
Number
Voltage
Capacity (Ah)
Qty Required
Olympic Batteries SLA CJ12-7 12 7 2
Olympic Batteries SLA CJ12-12 12 12 2
Olympic Batteries SLA CJ12-18 12 18 2
Olympic Batteries SLA CJ12-26 12 26 2
Olympic Batteries SLA CJ12-33 12 33 2
Olympic Batteries SLA CJ12-40 12 40 2
Olympic Batteries SLA CJ12-85 12 85 2
Olympic Batteries SLA CJ12-100 12 100 2
CAUTION:
Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to Manufacturer Instructions
AC
INPUT
24V
0V
-+
24V
0V
REMOTE
OUTPUT
REMOTE
INPUT
BATT
INPUT
EXTERNAL
POWER
SUPPLY
OUTPUT
POWER IN
NI-2008 GAS
SUPPRESSION
MODULE
3300uF
6A4
