Notifier IFS-2600 - System Overview

IFS-2600 Fire Indicator Panel Section 2 System Overview
DOC-01-009 5
2.6. Keypad
The custom-designed 30 key membrane keypad is the users interface to accessing all zone and global
functions of the IFS-2600.These 30 keys consist of;

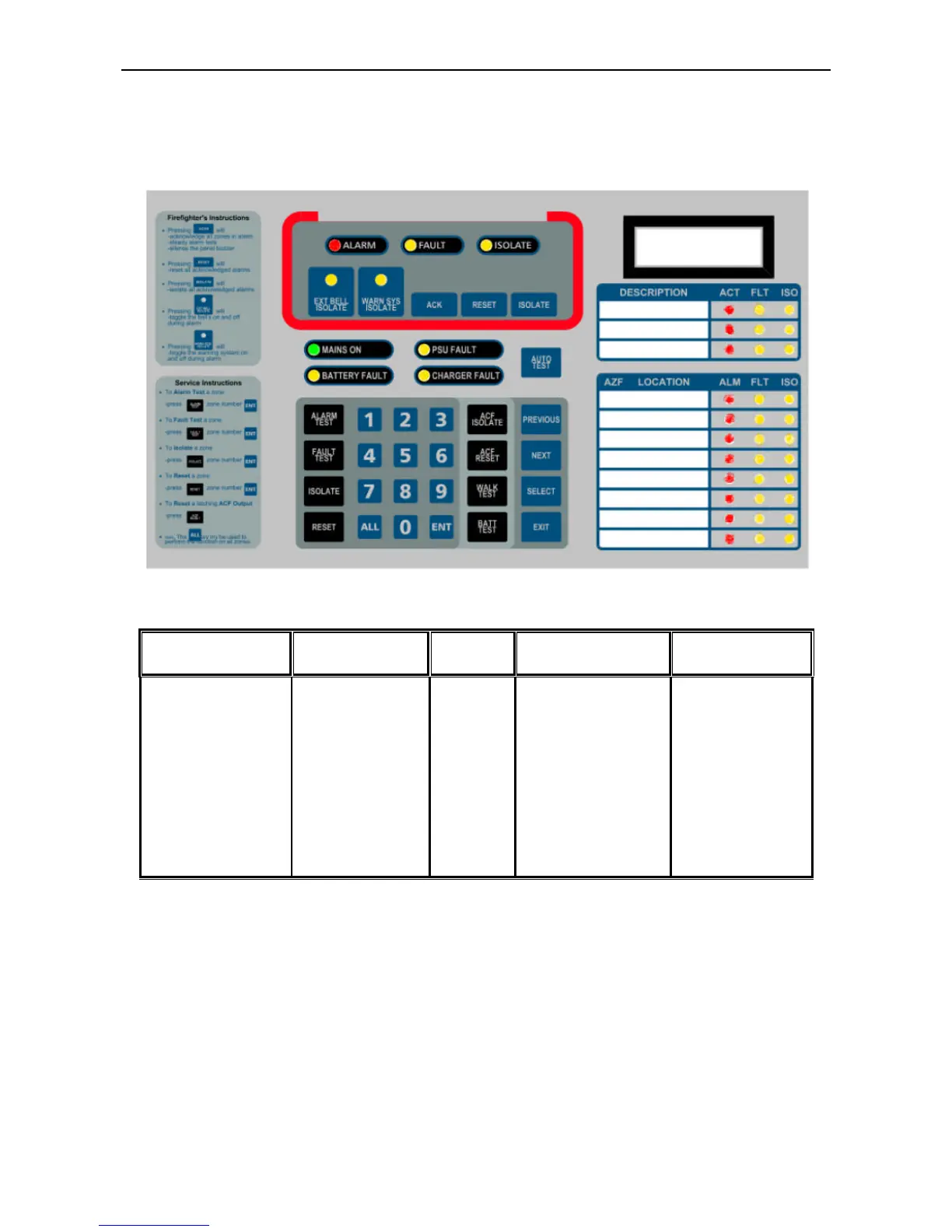

Figure 2-1, IFS-2600 Keypad
1. Five Specialised single-stroke Fire Fighters Keys
2. Four Zone function keys
3. Twelve Keys for Numeric Entry
4. Five Global function keys
5. Four Programming Keys
Operations and functions of these keys are explained in Section 3
Fire Fighter’s
Keys
Zone Function
Keys
Numeric
Keys
Global Function
Keys
Programming
Keys
EXT BELL ISOLATE ALARM TEST
0 – 9 Keys
ENT Key
ALL Key
AUTO TEST PREVIOUS
WARN SYS
ISOLATE
FAULT TEST ACF ISOLATE NEXT
ACK ISOLATE ACF RESET SELECT
RESET RESET WALK TEST EXIT
ISOLATE BATT TEST
FIRE FIGHTER
’
S FACILITY
BELLS
WARNING SYSTEM
ACF
1
2
3
4
5
6
7
8
