Novation Circuit User Manual

12
English

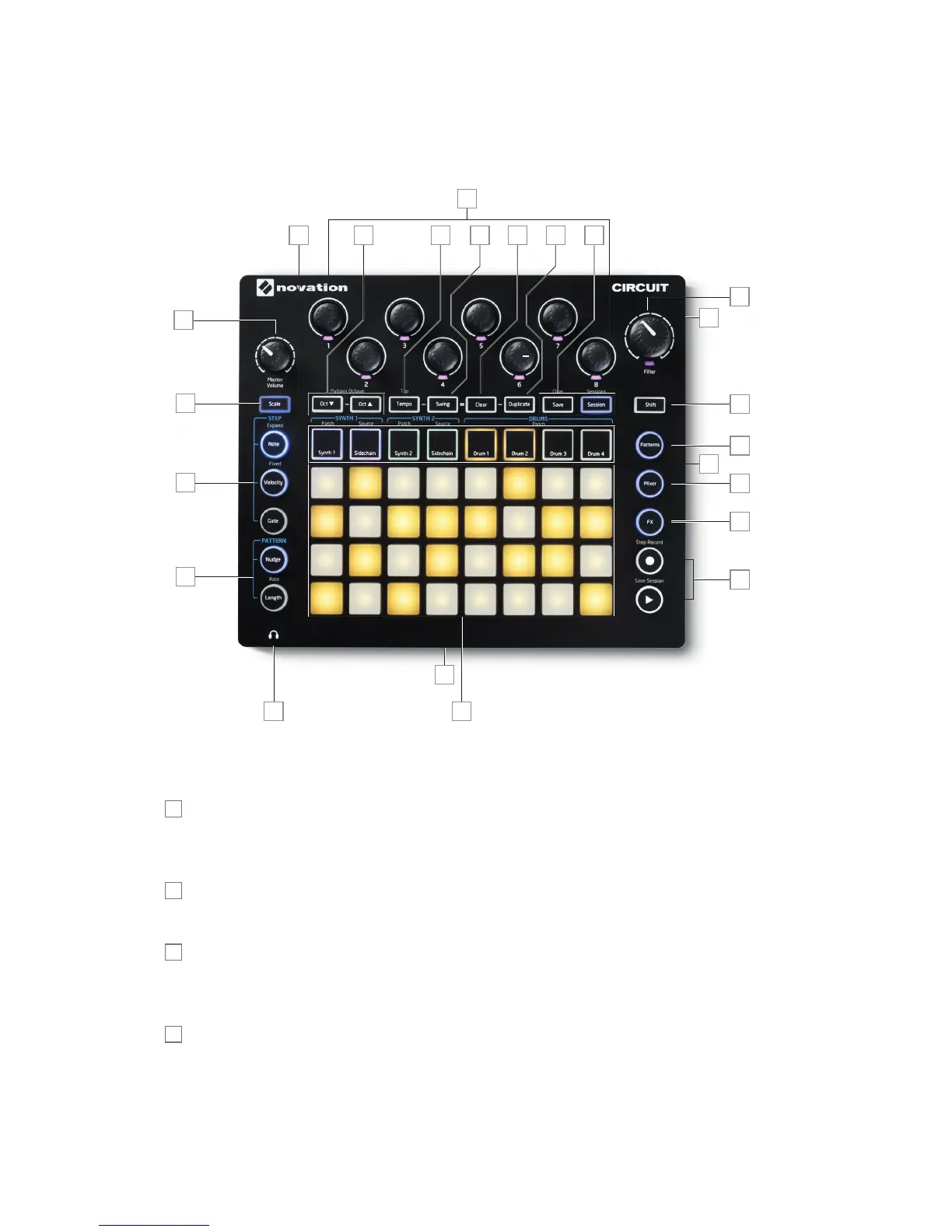

Top View – controls
5 13
3
120
23
6
9
21
22
19
10
11
12
8
7
22
24
14 15 16 1817
1
32-pad playing grid – a 4 x 8 matrix of rubber pads; internally illuminated with RGB LEDs.
Depending on the view selected, the grid may be “split” into logical areas with different
functions.
2
Filter – large diameter rotary control with a centre detent and RGB LED: controls lter
frequency like on an analogue synth. It is always active.
3
Macro controls 1 to 8 – eight multi-functional rotary encoders, with associated RGB
LED. The availability and function of these controls varies across Circuit’s other views. The
movement of Macro controls in performance may be recorded and replayed.
4
Master Volume – controls the overall level of Circuit’s audio outputs.
Most of the remaining buttons switch the 32-pad grid into a specic View. Each View provides
information and control of a particular aspect of the track, pattern, sounds, timing, etc.

Novation Circuit Specifications

General

Type	Groovebox
Drum Tracks	4
Power	USB or 6xAA Batteries
Synth Engines	2
Pads	32 RGB Velocity-sensitive pads
Knobs	8
Effects	Delay and Reverb
Connectivity	MIDI In/Out, USB
Included Software	Ableton Live Lite, Components
Polyphony	6-voice
Sample Memory	60 seconds
Weight	1.0 kg
