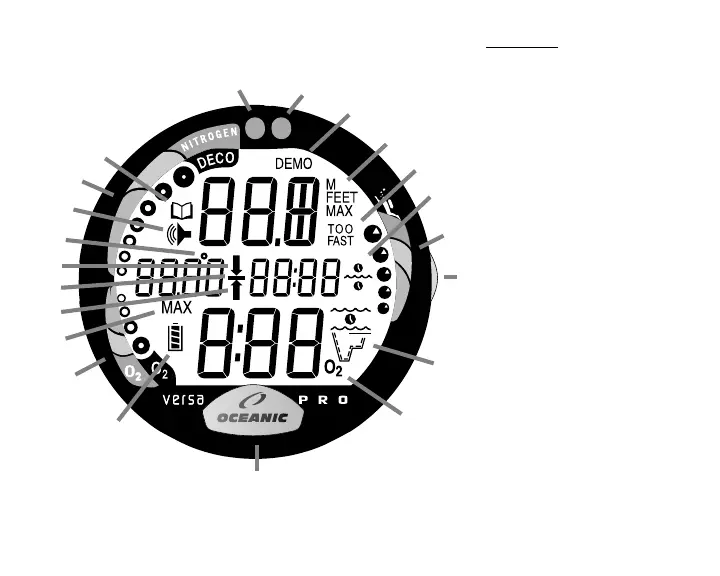

LCD DISPLAY
Components:
a. O2 (oxygen) Bar Graph
b. Tissue Loading Bar Graph
c. Variable Ascent Rate
Indicator
d. Select (side) Button
e. Advance (front) Button
f. Battery Indicator
g. Graphic - Maximum Depth
h. Icon - Ascend Arrow
i. Icon - Decompression Ceiling
j. Icon - Descend Arrow
k. Icon - Temperature
l. Icon - Alarm
m. Icon - Log Mode
n. Graphic - Demo Mode
o. Graphic - Depth
p Graphic - Ascent Too Fast
q. Icon - Time
r. Icon - Operating Mode
s. Icon - O2 (oxygen)
t. LED Warning Light
u. Smartglo Sensing Port
