CHAPTER 3 - MAINTENANCE PROCEDURES
Explorer
®
Series Service Manual 23 Ohaus Corporation www.ohaus.com

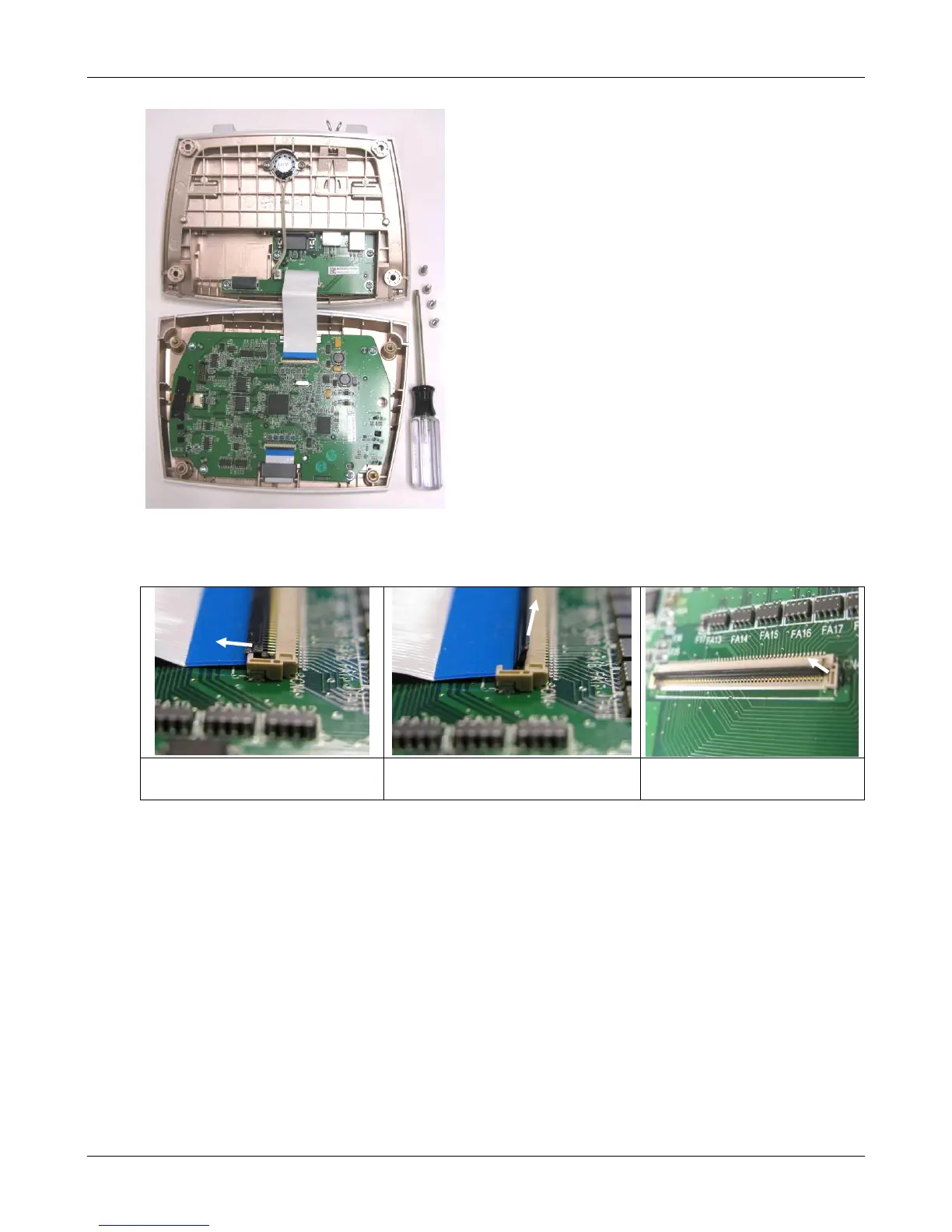

3. Turn the module over and open the upper housing. Be careful not to pull on the cables.
4. Disconnect the ribbon cable connecting the two assemblies. Using a finger nail or a thin screw
driver blade rotate the black cable-lock on the connector 90° so that it is perpendicular to the
cable.
Connector locked,
lock parallel to the cable
Connector released,
lock 90° to the cable
Connector release position
shown without cable
