Oki C9600 - Cover-Side (L) and Cover Assy-Front

Oki Data CONFIDENTIAL
42930511TH Rev. 2 106 /
2
1
5
5
4
3

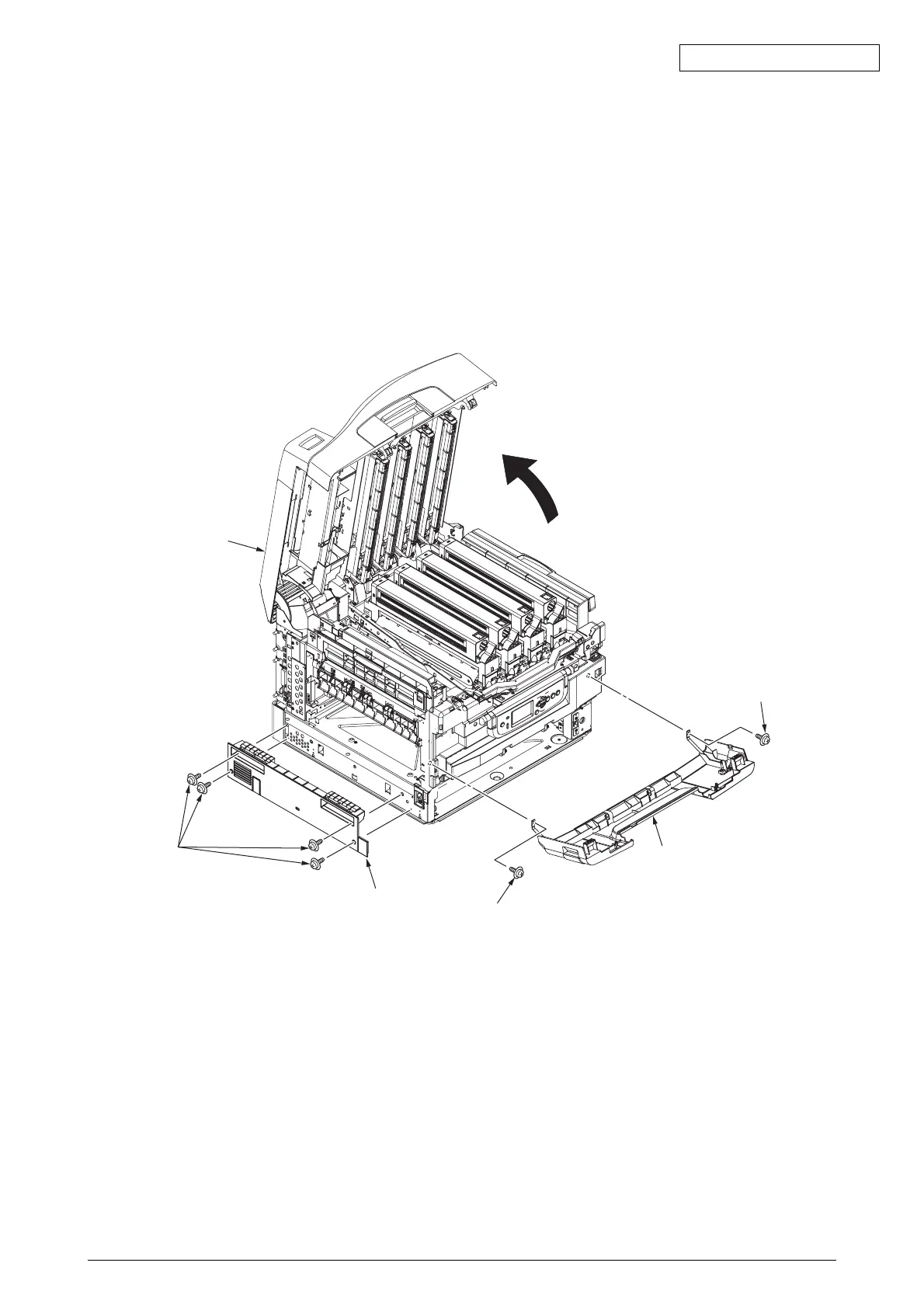

4.3.2 Cover-Side (L) and Cover Assy-Front
(1) Open Cover Assy-Top 1.
(2) Unscrew the 4 screws 2, then remove the Cover-Side (L) 3.
(3) Open the Cover Assy-Front 4 by 90°, unscrew the 2 screws 5, then slide the Assy to
the side and remove.
