Oki C9600 Service Manual

Oki Data CONFIDENTIAL
42930511TH Rev. 2 122 /
2
1
3
4
5
1

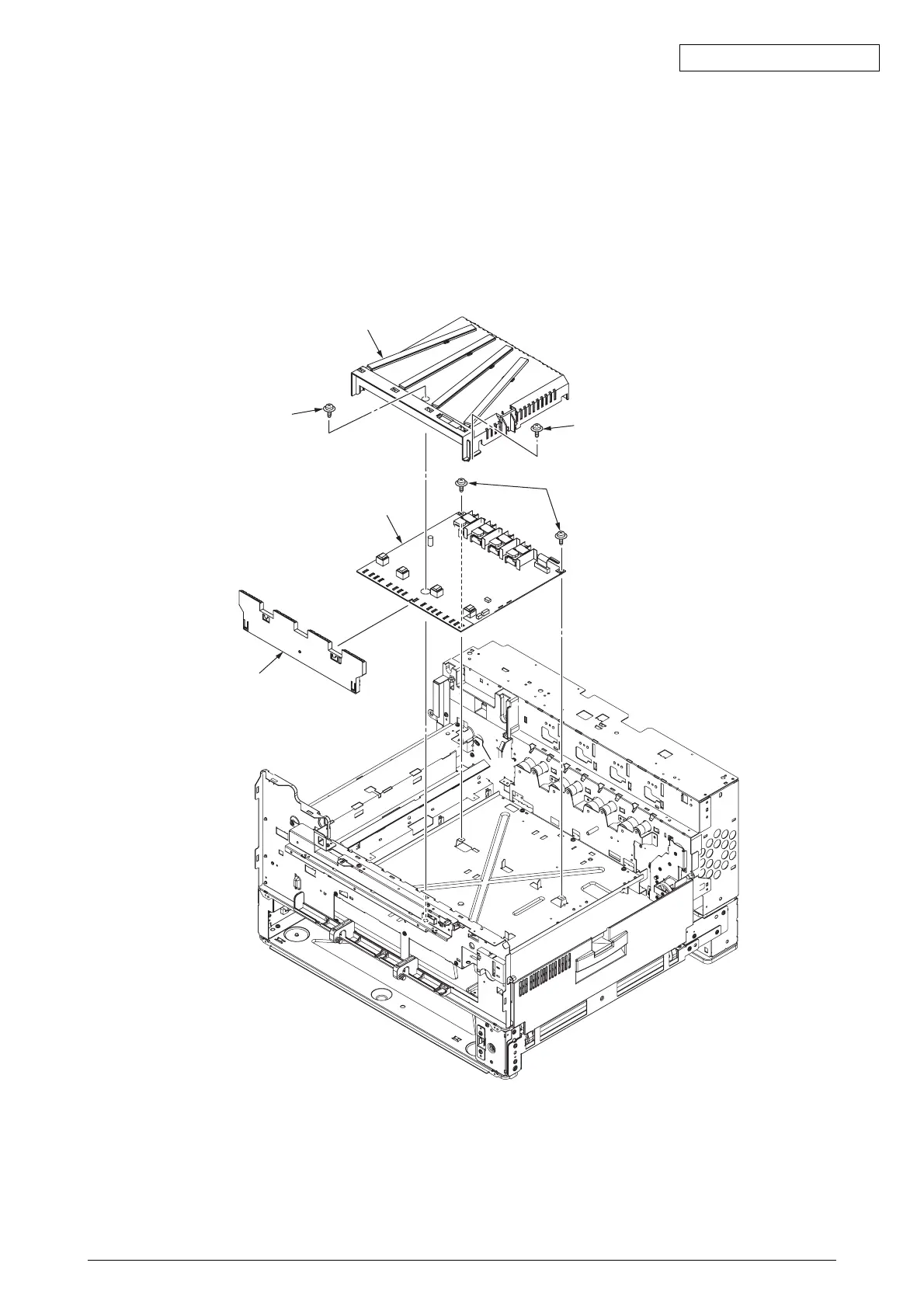

4.3.15 HV-Assy
(1) Open the Cover Assy-Top, then remove the Belt-Assy.
(2) Remove the Cover-Middle. (Refer to Section 4.3.14)
(2) Unscrew screw 1, then remove Cover-HV-Assy 2.
(3) Remove the 2 connectors and unscrew the 2 screws 3, then remove HV-Assy 4.
(4) Remove the 2 hinges, then remove Bracket-HV-Assy 5.
For ODA version
* Be careful to change the high-voltage power supply of 600dpi device due to different high-
voltage power supply based on a destibation.
Standard device : 43130501
Specified destination (for AB) : 42426501
