Oki C9600 - MPT Feed Roller

Oki Data CONFIDENTIAL
42930511TH Rev. 2 129 /
4.3.22 MPT Feed Roller

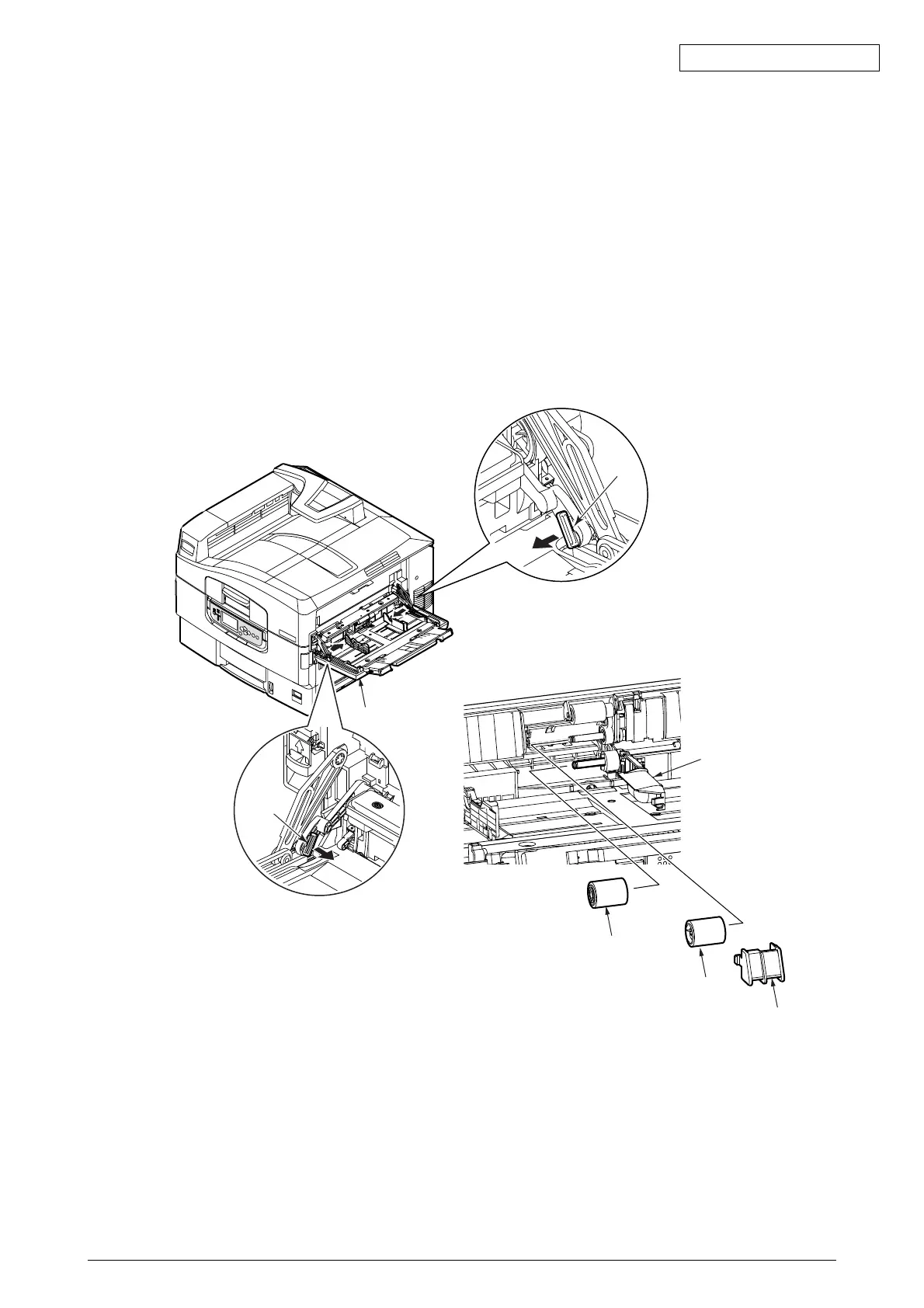

(1) Open the Multipurpose Tray 1, push the lever in the arrow direction and remove the
Multipurpose Tray 1.
(2) Remove the cover 2.
(3) While opening the claw of the Feed Roller 3 outward, slide the roller to the left and remove
it.
(4) Open the cover 4.
(5) While opening the claw of the Feed Roller 5 outward, slide the roller to the left and remove
it.
1
2
3
5
4
Lever
Lever
