3.5 Assembly Procedure
3.5.1 Printer Main Body

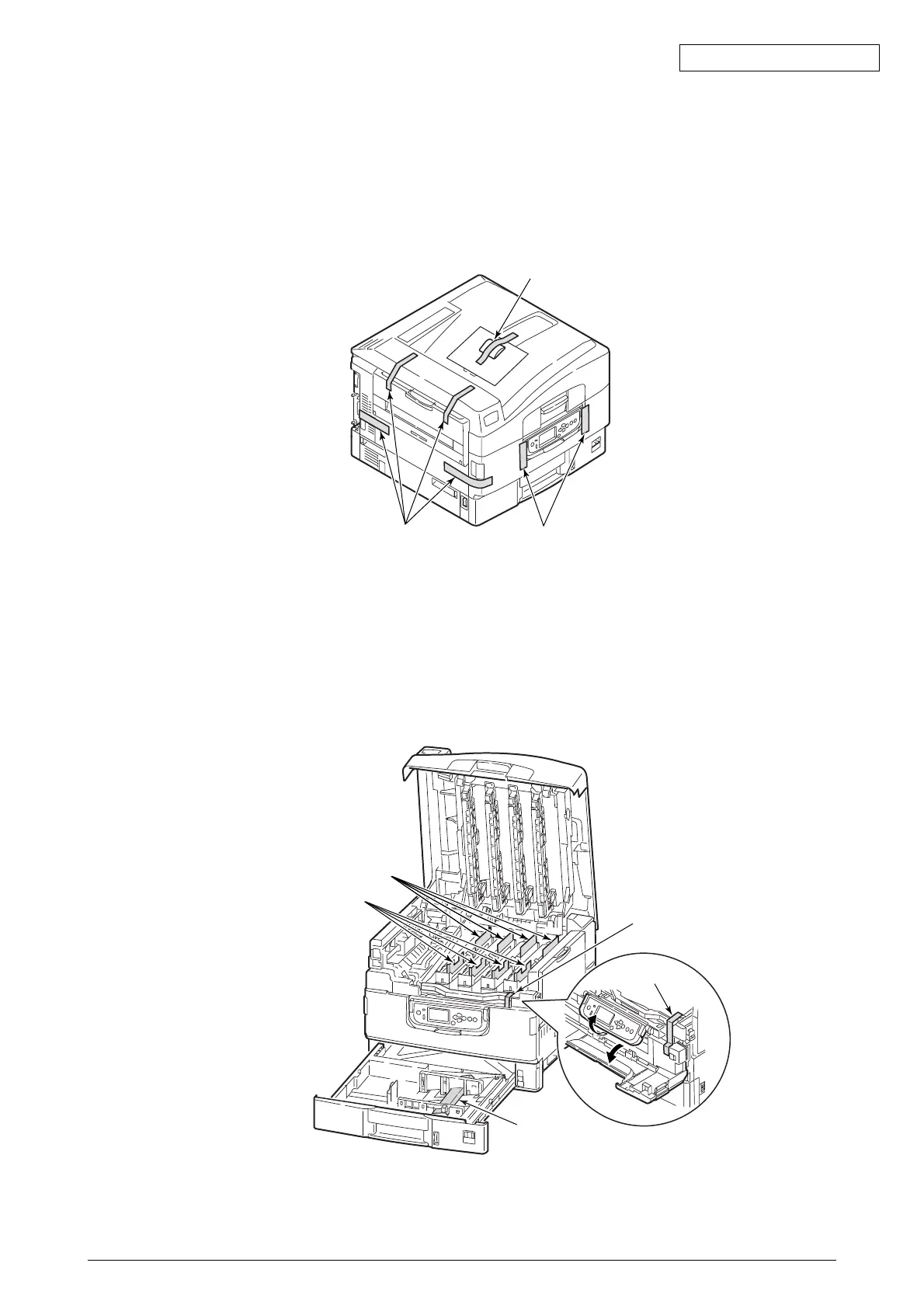

Remove Protective Equipment
(1) Remove protection tapes on the side of printer (6 places), a sheet of paper and desiccant on
the top.
Protection tape
(2 places)
Protection tape
(4 places)
Desiccant
(2) Press down the open button to open the top cover.
(3) Pull out the protective equipment (8 places) and remove protection tapes.
(4) Remove the paper cassette.
(5) Remove the protective equipment inside the paper cassette.
Protective equipment
Protective equipment (4 places)
Protective equipment
(4 places)
Protection tape
Protection tape
