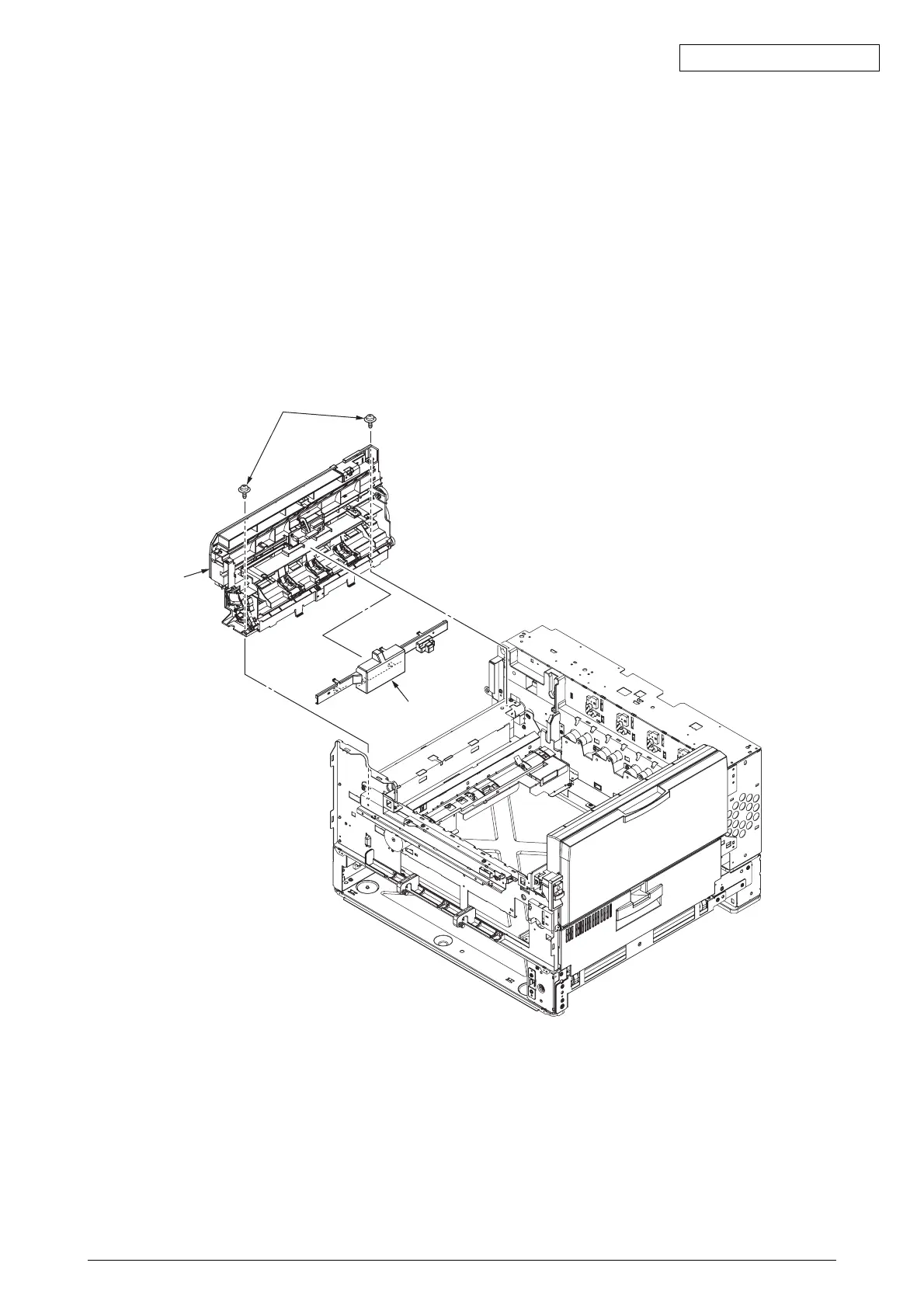

4.3.10 Eject-Assy
(1) Remove the 7 hinges then remove Cover-Board 1.
(2) Remove the 13 connectors, and unscrew the 2 screws 2. Then remove the 3 hinges and
remove the Eject-Assy 3.
