Oki Data CONFIDENTIAL
42930511TH Rev. 2
125 /
1
2
3
4
5
5
4
Lock lever
4.3.18

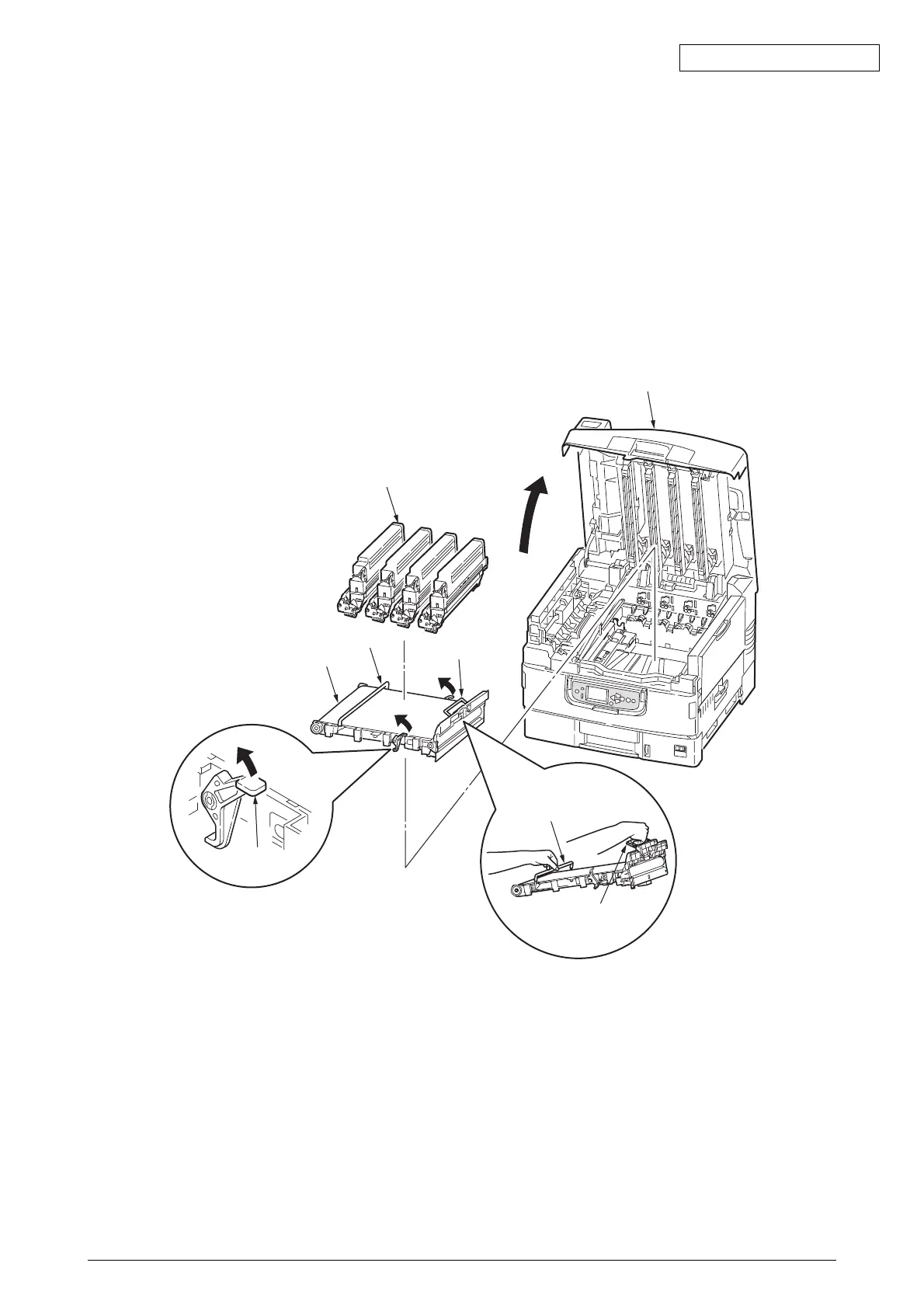

Belt-Assy
(1)
Open the Cover Assy-Top
1
.
(2)
Remove ID Unit
2
.
(3)
Lift up the 2 lock levers toward the arrow, then remove the Belt-Assy
3
.
Remove Belt-Assy
3
by lifting handle
4
, then remove along with handle
5
.
124
