Oki Data CONFIDENTIAL
42930511TH Rev. 2 126 /
Lock lever
1
2

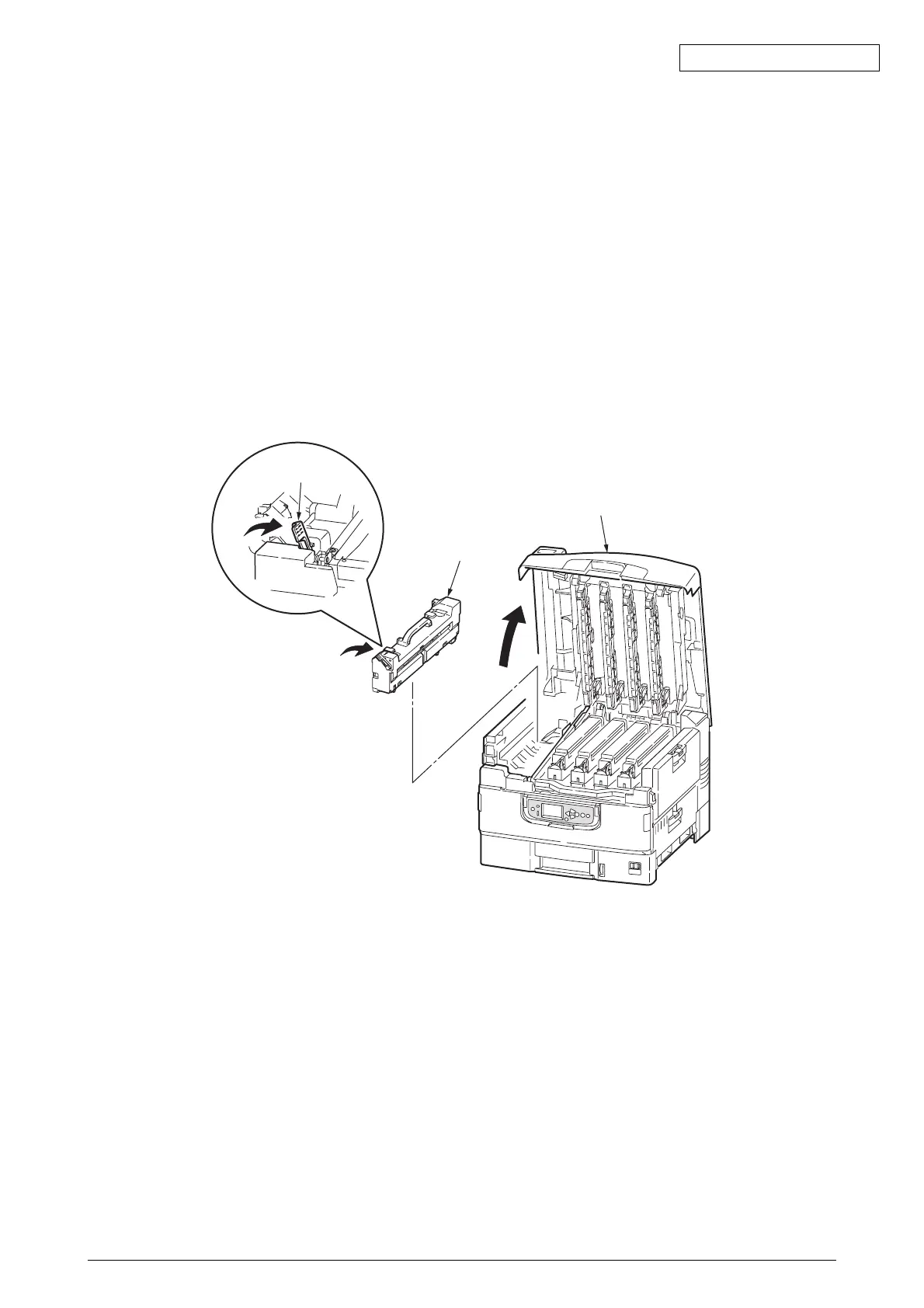

4.3.19 Fuser Unit-LBT
(1) Open Cover Assy-Top 1.
(2) Lift the lock lever toward the arrow, then remove the Fuser Unit-LBT 2.
