Cover-Screw
Depending on production lot, the printer may have the Cover-Screws (protection cover for
protruding screws) in the locations below. Before disassembling the printer, remove the Duplex
Unit and check to see if the Cover-Screws (black molding) are installed on the reverse side of
the Plate-HV. If they are, be careful when removing them.
A Cover-Screw is only fit onto each screw and not fastened. If the screw is loosened, the Cover-
Screw will come off. When installing the Cover-Screw, make sure that the location is correct.
Push the Cover-Screw onto the screw.
The Cover-Screws are not a functional part but a protector to prevent damage during installation
of the Duplex Unit.

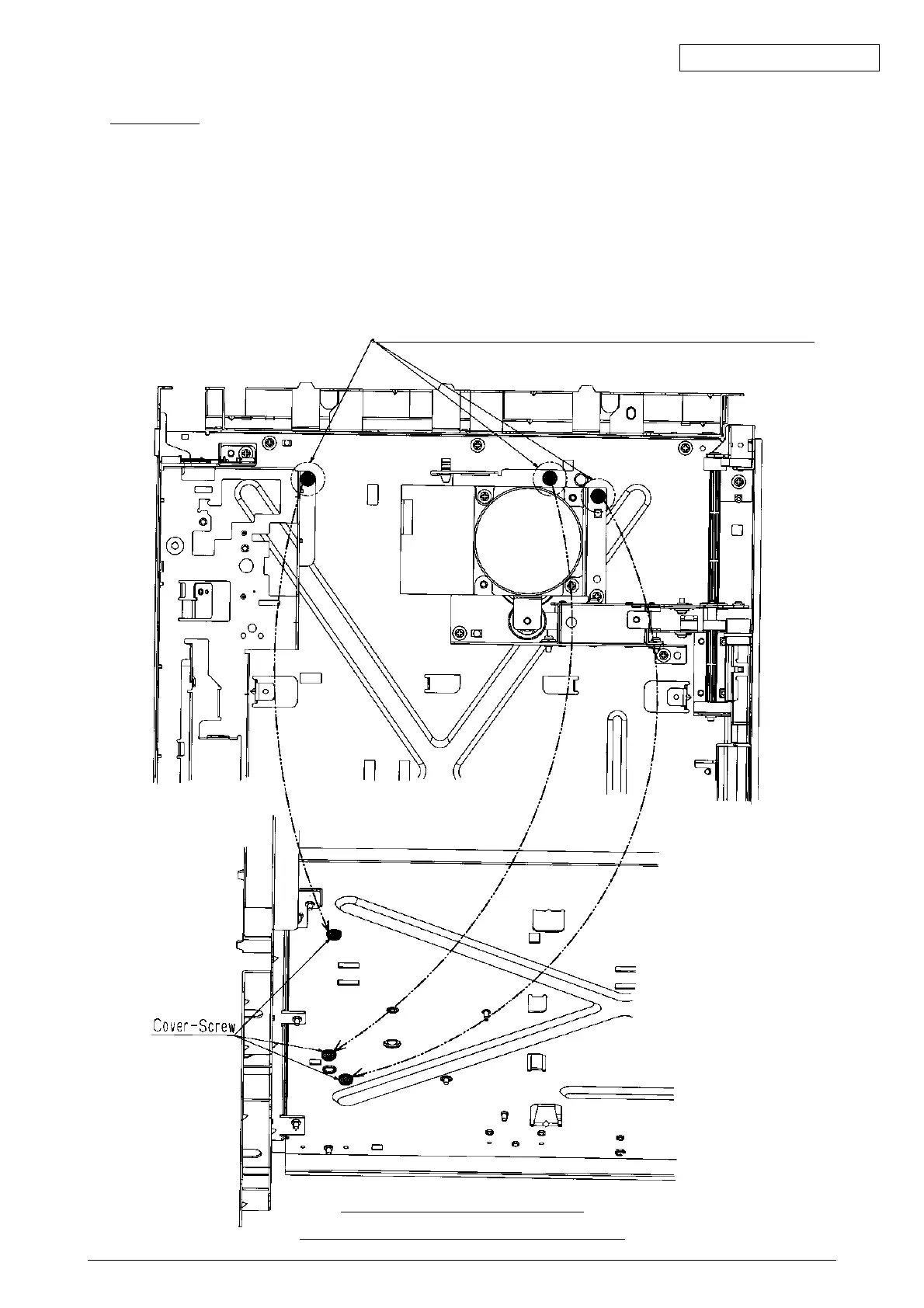

View of Reverse Side of Plate-HV
from the direction of inserting the Duplex Unit
Install the cover-screw from the other side in the screw in one place in the Sensor-Regist-
Assy installation part and two places in the abandonment toner motor installation part.
Do not lose the cover screw because it comes off when the screw in this
part is detached.
To Next Page
