Oki C9600 Service Manual

Oki Data CONFIDENTIAL
42930511TH Rev. 2 16 /
PARALLEL DATA
(DATA BITs 1 to 8)
nStrobe
nAck
BUSY
0.5 µs min.
0.5 µs min.
0.5 µs min.
0.5 µs max.
0.5 µs min.
0 min.
0 min.
0.5 µs to 3 µs
0 min.
ON-LINE SW
BUSY
100 ms max.
SELECT
SELECT
ACKNOWLEDGE
ON-LINE SW
BUSY
INPUT. PRIME
SELECT
ACKNOWLEDGE
BUSY
50 µs min.
* It is based on a menu setup.
5µs max.

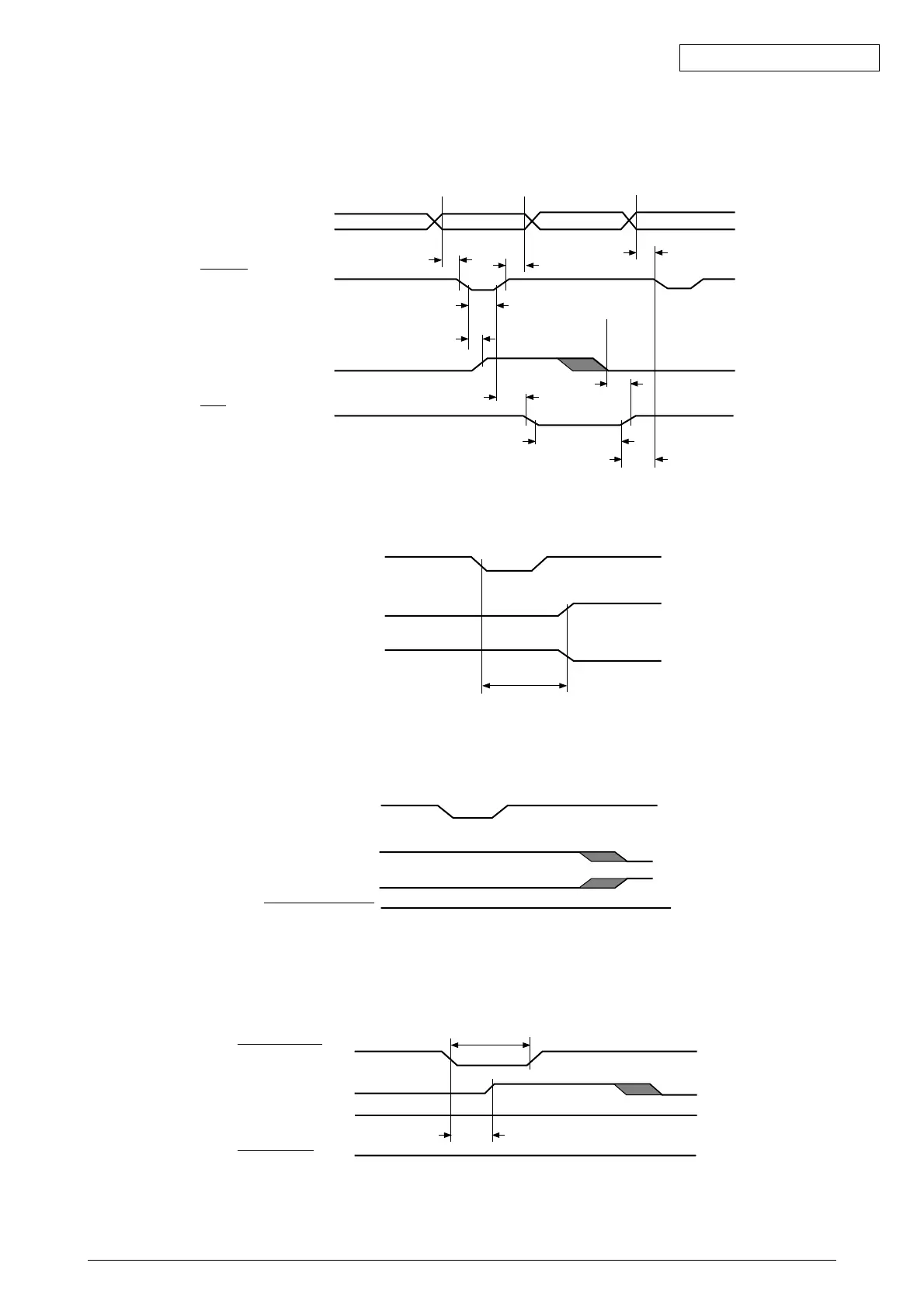

1.5.1.4 Timing Chart
■ Compatible Mode
a) Data Reception Timing
b) Online/Online SW for Offline Switching Timing
c) Offline/Online SW for Online Switching Timing
d) nlnit Timing (Default Invalid)

Oki C9600 Specifications

General

Brand	Oki
Model	C9600
Category	All in One Printer
Language	English
