TNRSNS t1<0.85
T=2.3
t1
ON
OFF
TNRSNS
ON
OFF
t1>0.85
T=2.3
t1

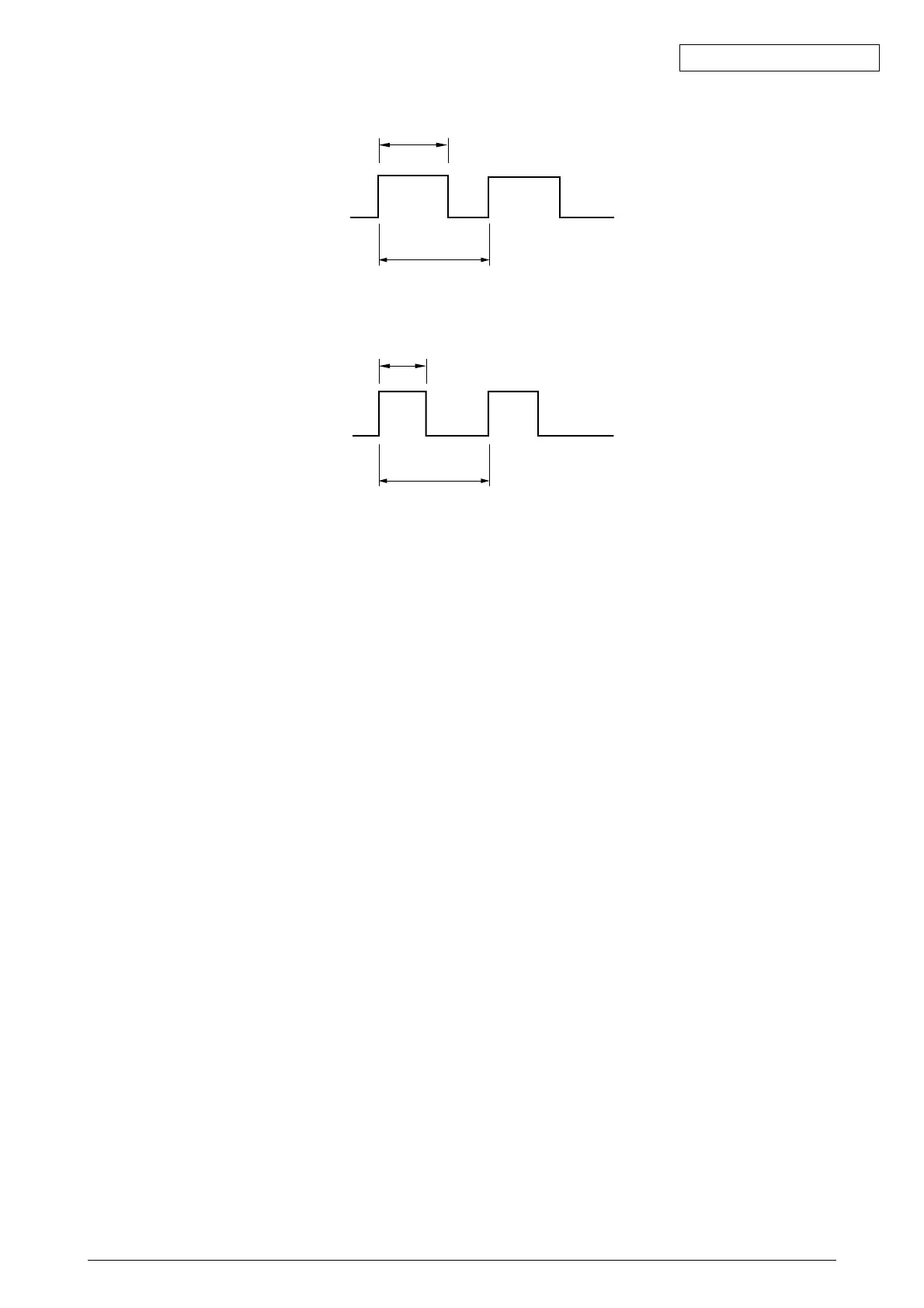

Toner High Level State (at 37ppm
*1
)
Toner Low Level State (at 37ppm
*1
)
• After a toner supply start, when a toner low sate is detected 20 consecutive times, it is
recognized as the toner being low.
(After recognizing toner low, then toner low is displayed after printing an equivalent of 5%
of 200 A4 sheets.)
The toner in a toner cartridge is lost.
• If a toner full state is detected 10 consecutive times, the toner low state is canceled.
• If the toner sensor does not change over 3 cycles (2.3 sec. X 3), then the toner sensor
alarm is activated.
• The toner sensor does not detect anything when the drum motor is stopped.
*1
A 37ppm printout is at the warming up stage. T and t1 fluctuates in proportion to the
printing speed.
