158
10-4-3. Adjusting the label sensor
1) When "LABEL SENSOR" is printed, press and hold down the FEED
switch for one second or longer to start label sensor adjustment.

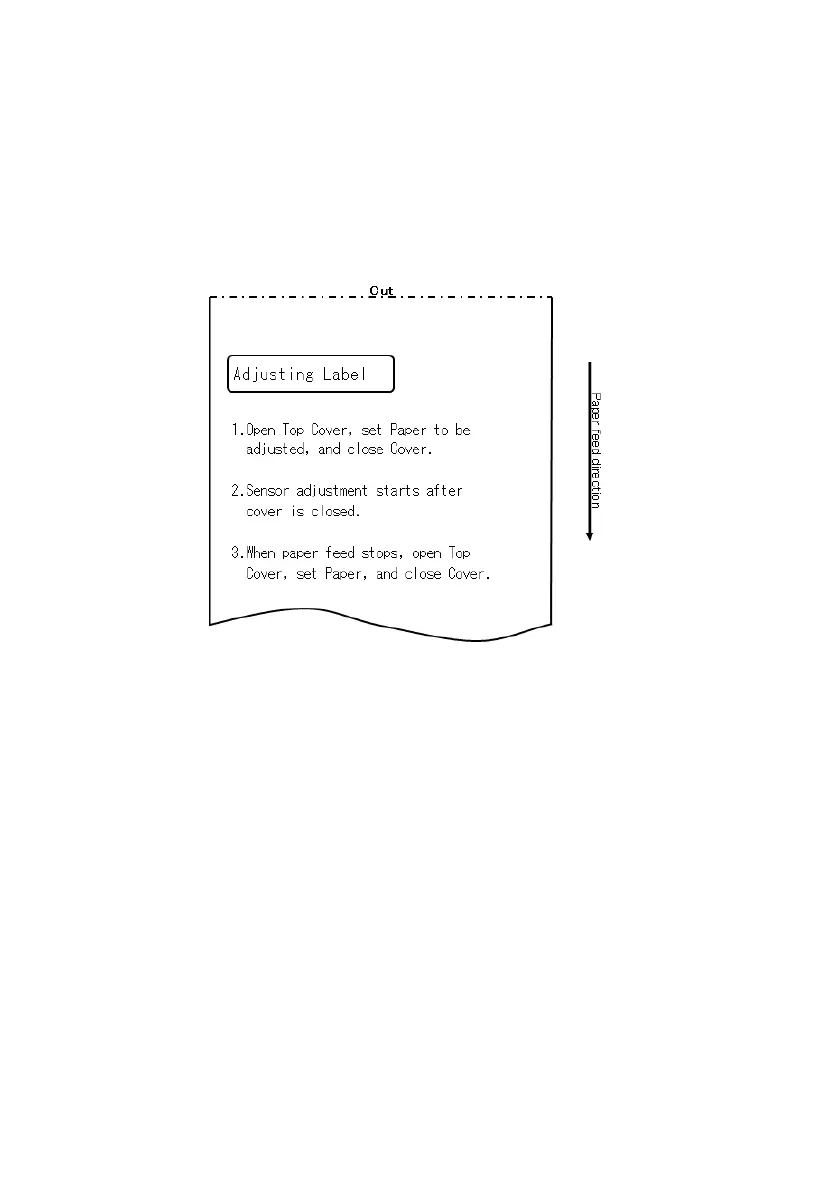

2) The printer prints the following and then cuts the paper when label
sensor adjustment begins:
3) Open the top cover and load the paper you want to adjust. When you close
the top cover, the printer starts feeding paper.
Note: Using any paper not meeting the requirements specified in Section
3-4-3, ”Requirements for die-cut label paper," will result in an
adjustment error.
4) The printer stops the adjustment in the following cases:
a. The cover is opened.
b. The printer has no paper.
c. The adjustment is completed.
To Next Page
