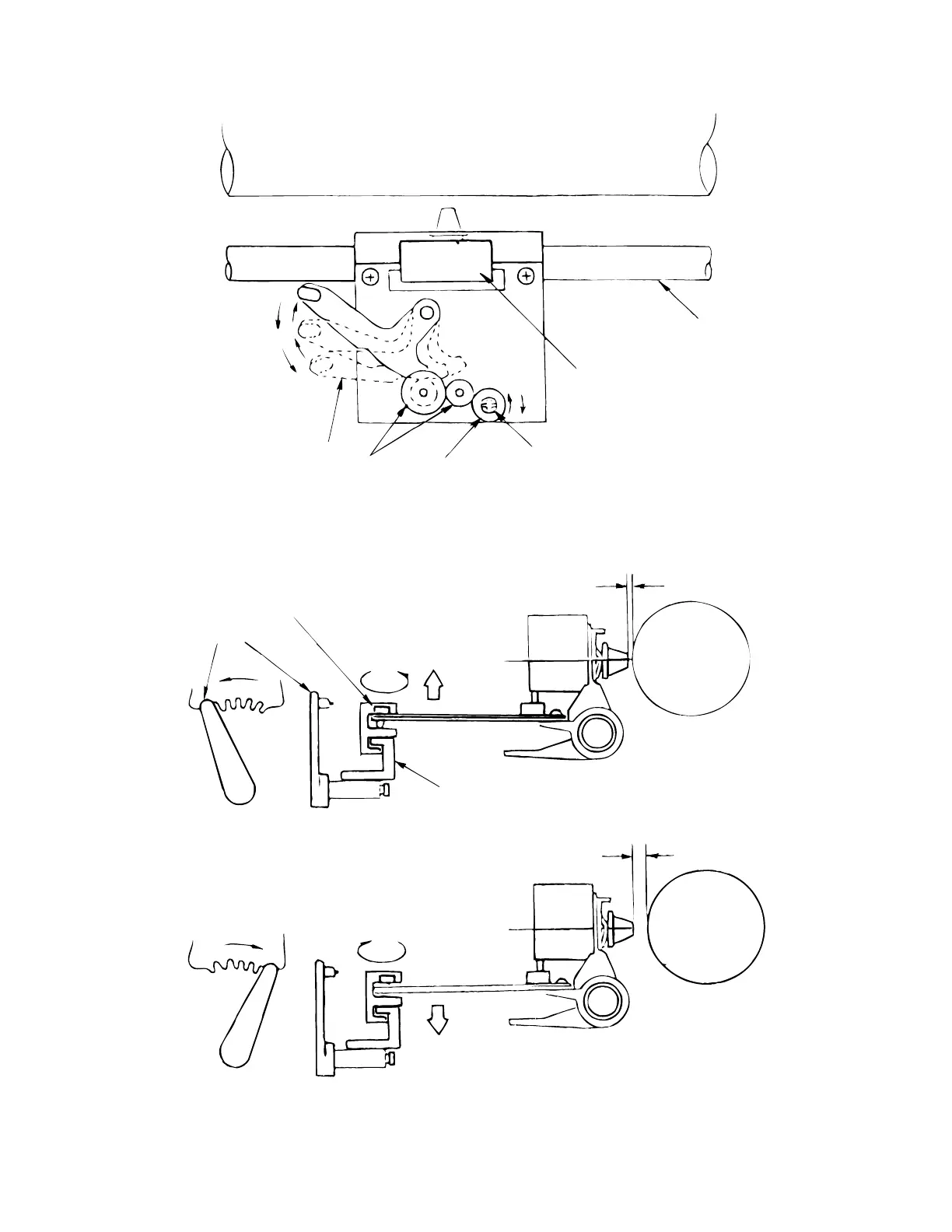

Figure 2-5
Platen
Range
Adjusting lever
Idler gear
Adjusting gear
Carriage shaft
Printhead
Adjusting screw
Adjusting cam
Adjusting screw
C.C.W.
Printhead
Narrows
Platen
Guide rail
Widens
C.W.
1
2
3
4
5
Range from 5 to 1
Range from 1 to 5
