OKIDATA MICROLINE 320 - LF Motor

3 – 17
3.3.13 LF Motor
(1) Remove the upper cover (see 3.3.4).
(2) Remove the printhead (see 3.3.1).
(3) Remove the ribbon protector (see 3.3.2).
(4) Remove the pull-up roller Assy (see 3.3.3).
(5) Remove the platen Assy (see 3.3.11).
(6) Remove the driver board (see 3.3.12).

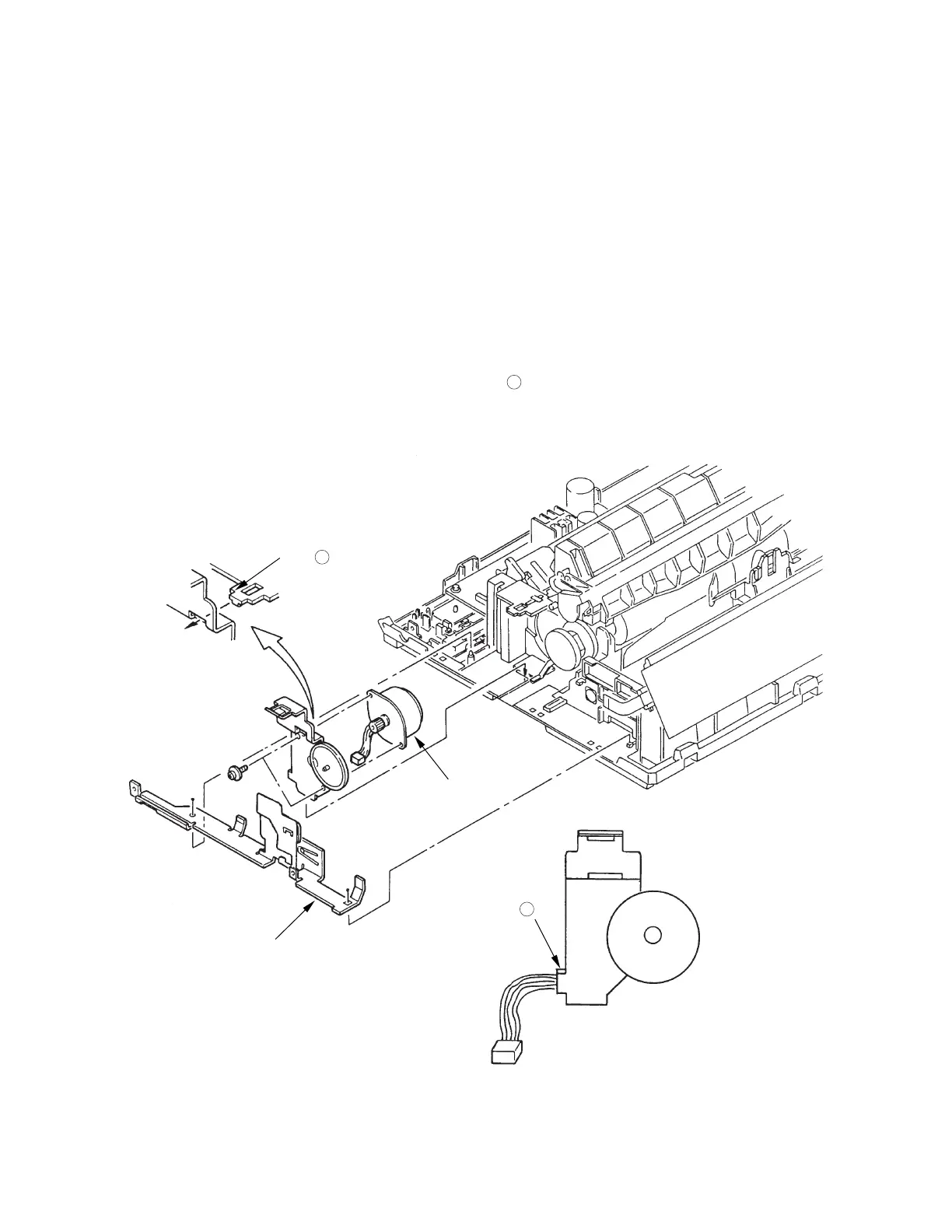

(7) Remove the left FG plate 1: lift base at three points to release tabs.
(8) Release the lock A to remove the LF motor 2.
(9) To install, follow the removal steps in reverse order.
Note on installation:
Press the LF motor cable with a portion A of the motor plate.
Lock A
2
1
A
