(5) Pull tractor mechanism (option) (See Figure 2-12.)
Bottom feed of continuous sheets is possible only when the optional pull tractor unit is
installed.
The rotation of the platen is transmitted to the idle gear of the pull tractor unit through
the platen gear at the left end of the platen. The rotation of the idle gear is transmitted
to the drive gear, and paper is fed when the sheet feeder shaft turns the pull tractor.

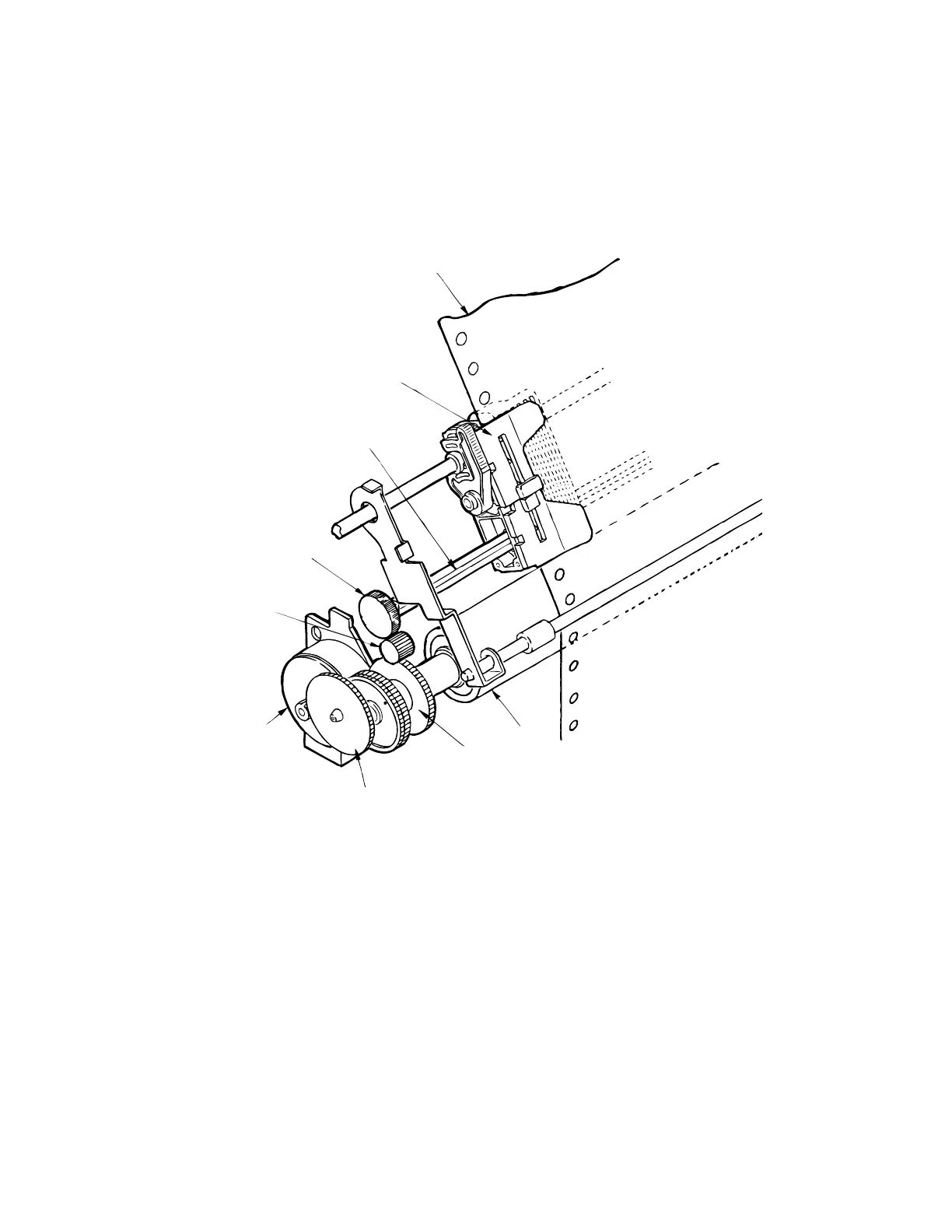

Figure 2-12
Continuous sheet form
Pull
Tractor assembly
Sheet feeder shaft
Drive gear
Idle gear
Platen
LF motor
Platen gear
LF Idle gear
