OKM eXp 6000 - Scan Analysis

Operating modes 51
6.5.2 Scan Analysis
After transferring the scan images to your computer (as described in section 6.8.6 “Copy files to USB
stick” on page 69), you will now see a scan that is a straight line. This scan is now ready to begin the
analysis.
To see the differences within the scan rotate it to the side.
OKM GmbH
www.okmmetaldetectors.com

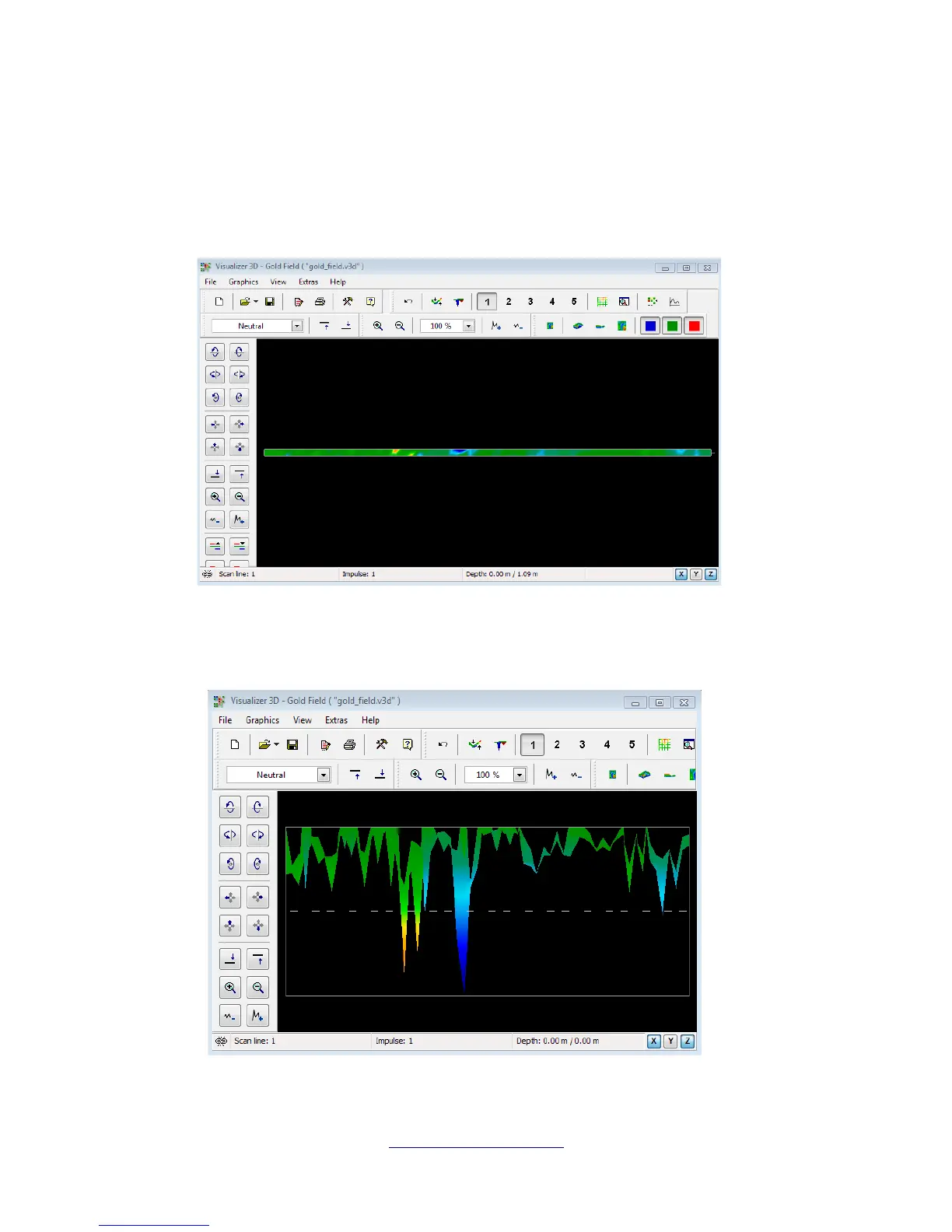

Figure 6.13: Visualizer 3D Screen shot
Figure 6.14: Side View of Scan Area
