Olympus 72DL PLUS User Manual

10-014357-01EN, Rev. 2, January 2022
Chapter 224
2.1.1 LEMO Transducer Connectors
The 72DL PLUS gauge is supplied with sealed LEMO 00 transducer connectors
(Figure 2-2 on page 24). A center pin automatically identifies the connected
transducer when certain Olympus corrosion dual element transducers are used.
When used with dual element transducers in through-transmission modes, the T/R
connector acts as the transmit connector and R connector acts as the receive connector.
For single element pulse-echo inspections, you must connect the transducer to the T/R
connector to send and receive a signal.

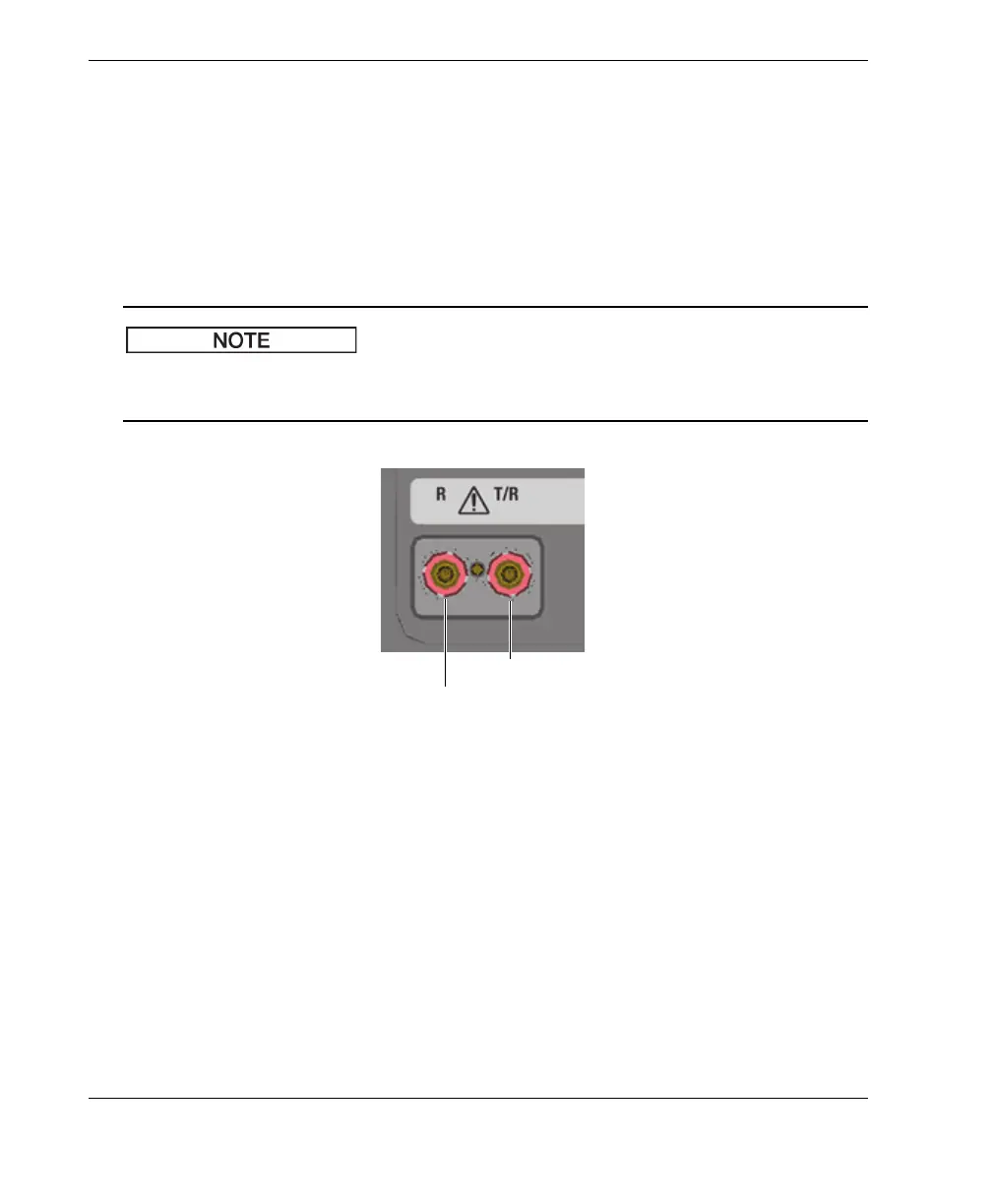

Figure 2-2 LEMO transducer connectors
2.1.2 BNC Connector
The BNC connector is for high-frequency transducers (high-frequency model only, see
Figure 2-3 on page 25).
NOTE
Receive connector
Transmit/Receive connector
