Chapter 2
30
Figure

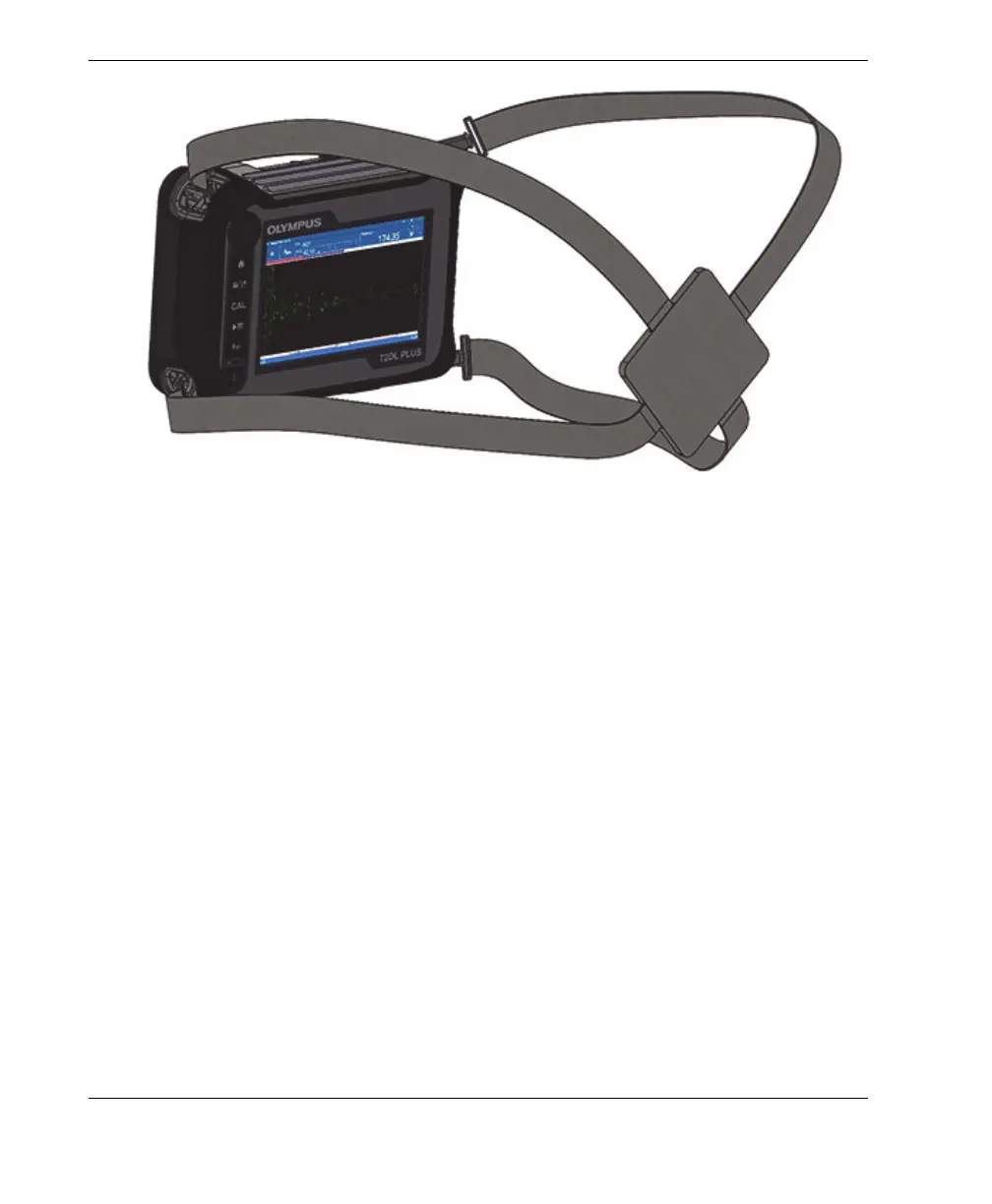

2-10 Chest harness
2.3.6
Shoulder Strap
The shoulder strap connects to any two mo
unting points of the 72DL
PLUS gauge
(Figure
2-11 on page
31).
