10-014357-01EN, Rev. 2, January 2022
Overview 25

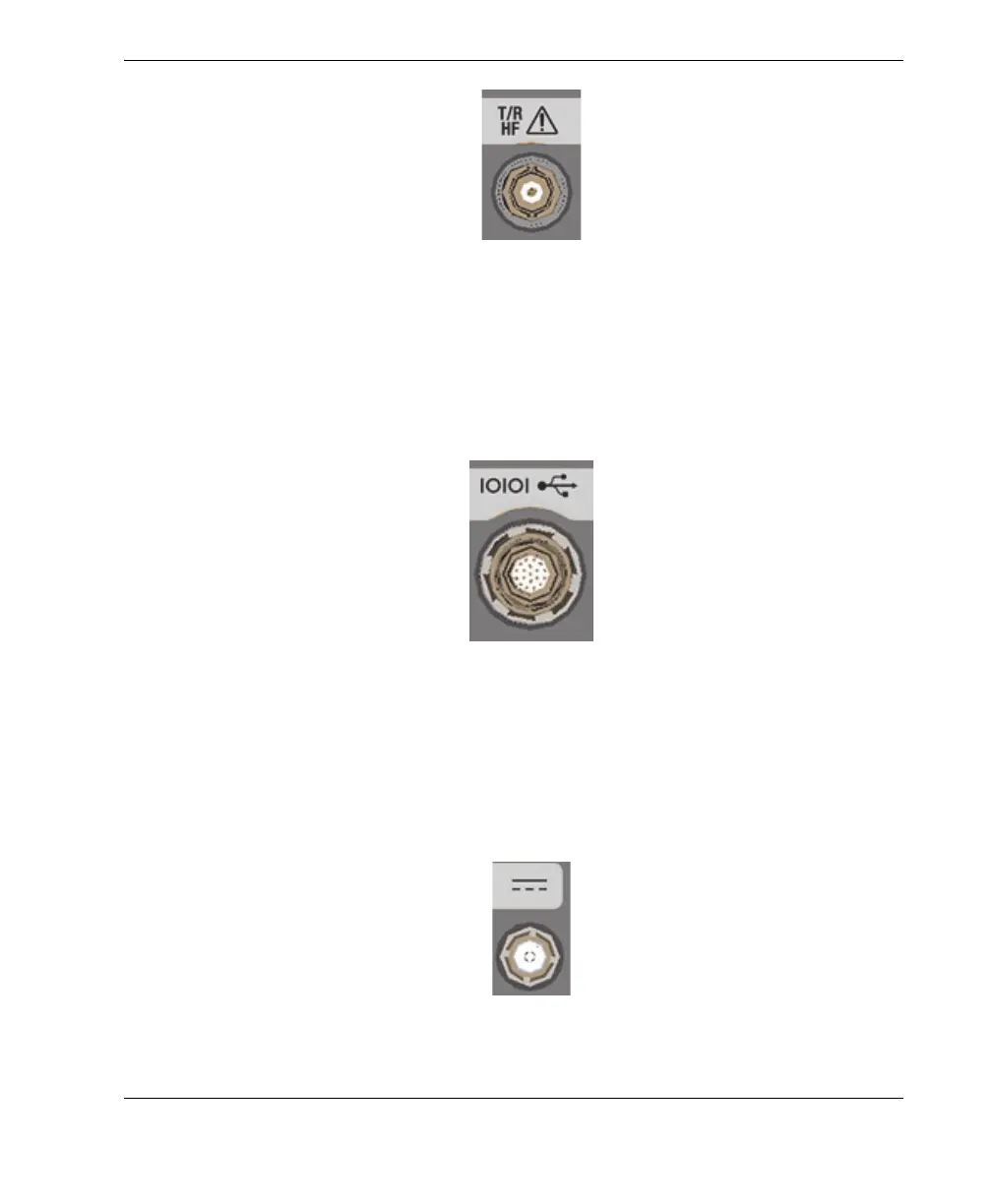

Figure 2-3 BNC connector
2.1.3 19-Pin Connector
The 19-pin connector is for the B-scan encoder and the foot switch (Figure 2-4 on
page 25).
Figure 2-4 19-pin connector
2.1.4 DC Power Connector
The AC charger/adapter connects to the DC power connector of 72DL PLUS gauge to
power the instrument and charge the battery (Figure 2-5 on page 25).
Figure 2-5 DC power connector
