Olympus E-M1 Mark III - Rear Camera Diagram

17 EN

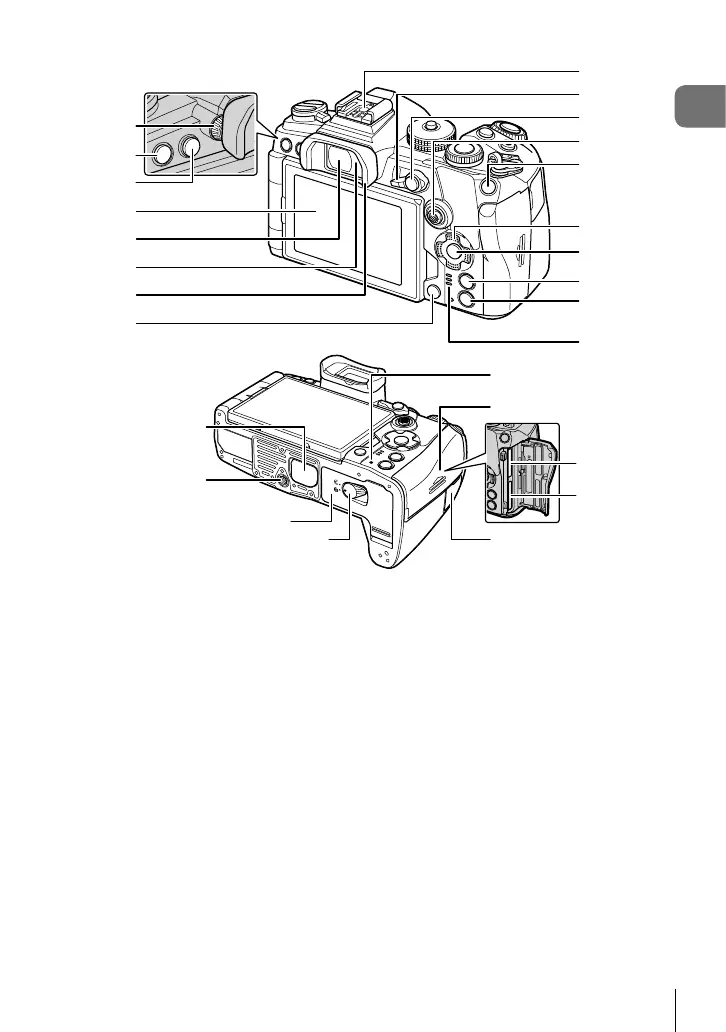

Names of parts
6
5
7
8
4
1
2
3
9
0
a
c
b
h
f
d
e
g
i
j
k
l
n
m
q
o
p
1 Diopter adjustment dial ...................P. 38
2 MENU button ...............................P. 139
3 u (LV) button ..............................P. 38
4 Monitor (Touch screen)
......................P. 36, 38, 43, 88, 126, 137
5 Viewfi nder ...............................P. 38, 240
6 Eye sensor
7 Eyecup ..........................................P. 291
8  (Erase) button ..........................P. 132
9 Hot shoe .................................P. 84, 287
0 Fn lever ...........................P. 44 – 50, 219
a AEL/AFL / 0 (Protect) button
.....................................P. 77, 201/P. 131
b Multi selector (S/T) *
1
............P. 69, 72
c ISO button ..............................P. 75, 226
d Arrow pad *
2
..................................P. 128
e Q button ........................P. 88, 128, 139
f INFO button ...........................P. 39, 127
g q (Playback) button ....................P. 128
h Speaker
i PBH cover.......................................P. 24
j Tripod socket
k Battery compartment cover.............P. 20
l Battery compartment lock ...............P. 20
m CHARGE (Battery charge) lamp ...P. 22
n Card compartment cover ................P. 26
o Card slot 1 ......................................P. 26
p Card slot 2 ......................................P. 26
q Remote cable terminal cover
(Remote cable terminal) ...............P. 291
*1 The multi selector is designed to be used in two ways. You can place a fi nger lightly on
the multi selector and pivot it in the desired direction (T). You can also press down on the
center of the multi selector much as you would a button (S).
*2 In this manual, the FGHI icons represent operations performed using the arrow pad.
