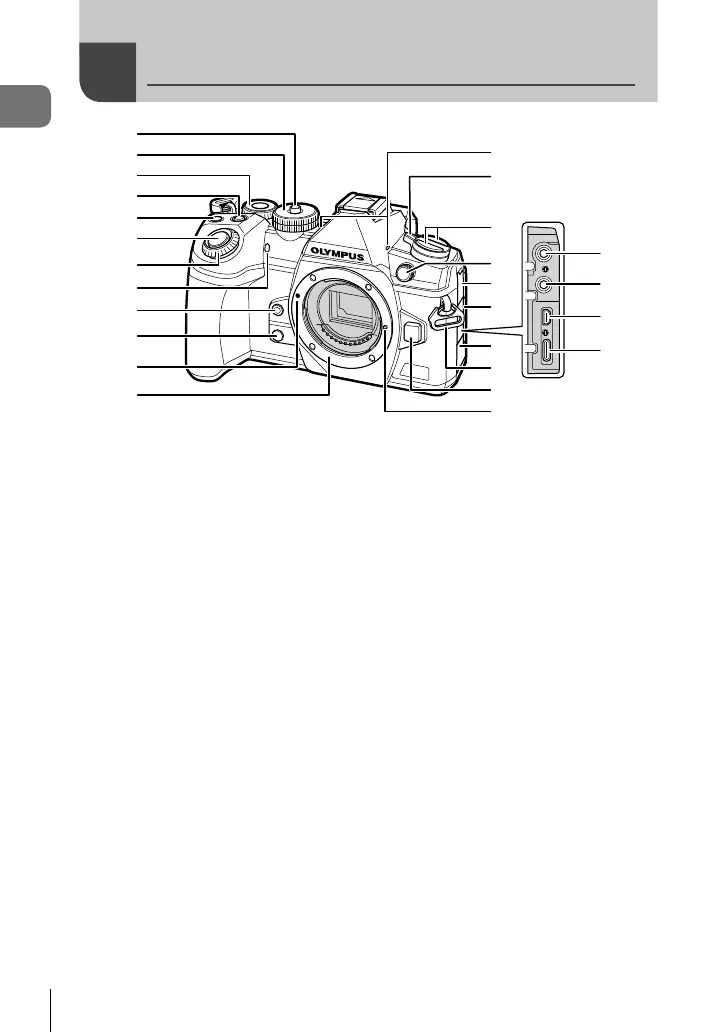

Names of parts
Names of parts
1
2
3
4
5
6
7
0
9
8
a
b
o
p
n
f
g
h
i
j
k
l
m
c
d
e
1 Mode dial lock .................................P. 41
2 Mode dial ........................................P. 41
3 Rear dial* (o)
.........................P. 44 – 50, 124, 128, 228
4 F (Exposure compensation) button
................................P. 45, 47, 49, 51, 68
5 R (Movie)/H button ............P. 59/P. 133
6 Shutter button .................................P. 42
7 Front dial* (r)
...........................P. 44 – 50, 75, 124, 128
8 Self-timer lamp/AF illuminator
.......................................P. 78, 98/P. 183
9 Y (One-touch white balance) button
........................................................P. 95
0 Z (Preview) button .......................P. 117
a Lens attachment mark ....................P. 28
b Mount (Remove the body cap before
attaching the lens.)
c Stereo microphone ...............P. 136, 169
d ON/OFF lever ................................P. 32
e v button .......................................P. 185
AFm (AF/metering mode) button
..................................................P. 64, 77
jY# (Sequential shooting/self-timer/
fl ash) button ....................................P. 78
f External flash terminal ....................P. 84
g Microphone jack cover
h Cover for headphone jack.............P. 169
i Connector cover
j Strap eyelet.....................................P. 19
k Lens release button ........................P. 30
l Lens lock pin
m
Microphone jack (ø3.5 mm stereo mini-
jack for third-party microphones)
...P. 169
n Headphone jack (ø3.5 mm stereo mini-
jack for third-party headphones) ...P. 169
o HDMI connector (Type D) .............P. 230
p USB connector (Type C)
......................................P. 258, 275, 277
* In this manual, the r and o icons represent operations performed using the front dial
and rear dial.
