CP TD1 User Manual
48 OMICRON
For the measurement of C
H
the HV output has to be attached to the HV winding. The other windings are
connected to IN A and IN B. This way, also C
HL
and C
HT
could be measured (see Figure 5-10 and Table
5-6 below).

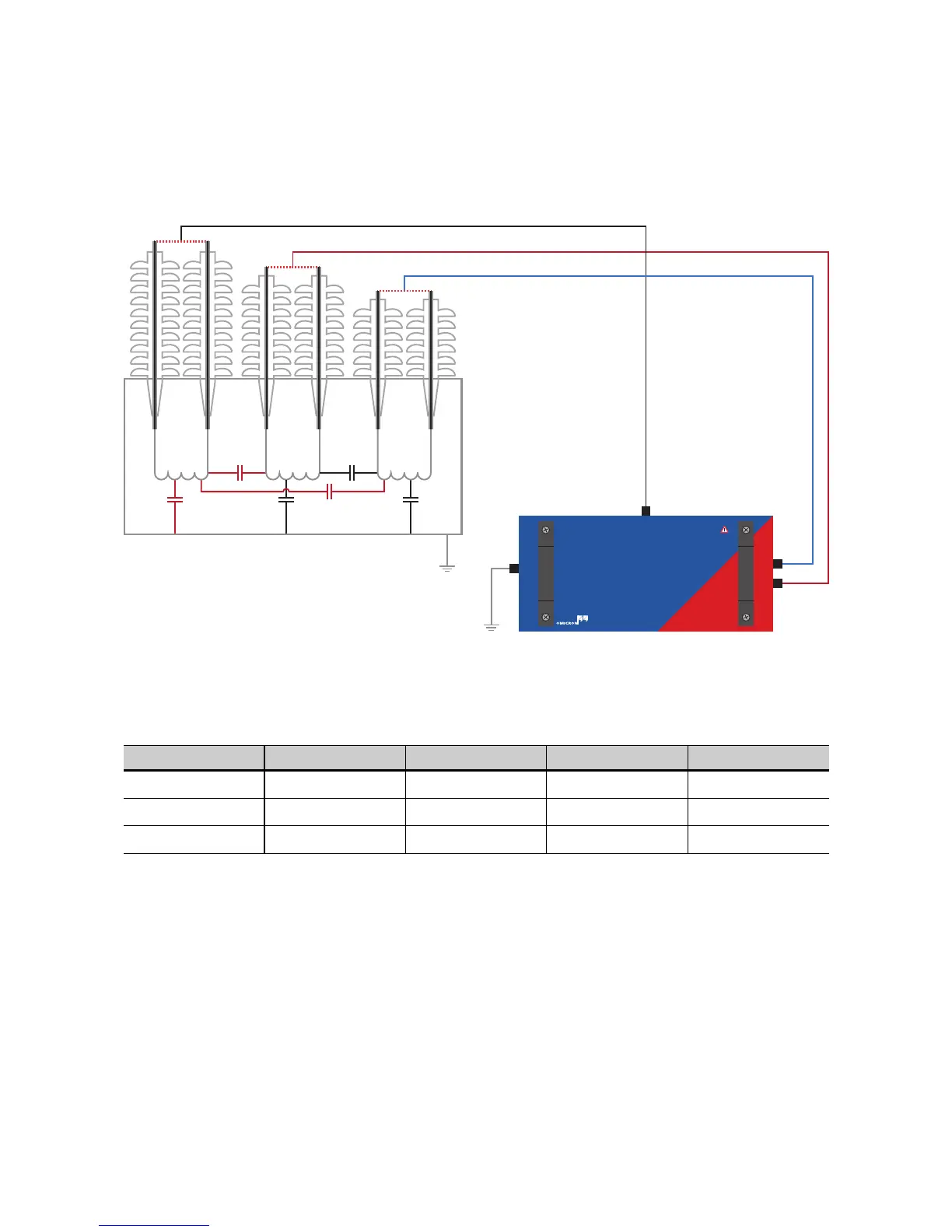

Figure 5-10: CP TD1 connected to a three-winding transformer for the measurement of C
H
With this setup the following 3 configurations are available:
Table 5-6: Modes available with a measurement setup as seen in Figure 5-10
Mode IN A IN B Ground Result
GSTg-(A+B) Guarded Guarded Measured C
H
UST-A Measured Guarded Guarded C
HL
UST-B Guarded Measured Guarded C
HT
