CP TD1 User Manual
54 OMICRON
Third file
A third test file is used for the tests with the tertiary winding connected to the high-voltage output of the
CP TD1. Figure 5-19 shows the connection instructions for the tests with energized tertiary winding.

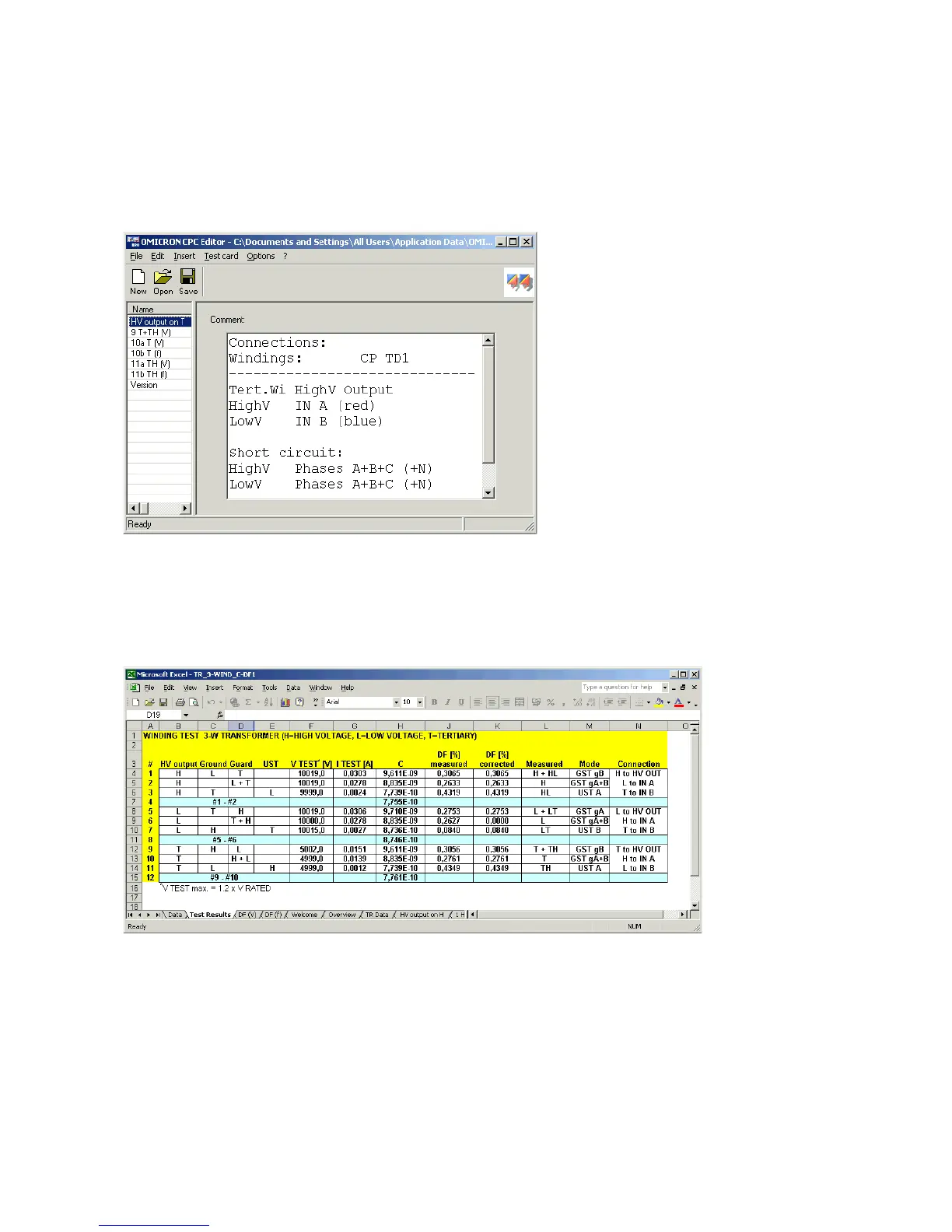

Figure 5-19: Connection instructions for the tests with energized tertiary winding
The prepared tests are to be uploaded to the CPC 100 as xml files without results. After the test is done,
this xml file with the results is downloaded to the computer and loaded into Microsoft Excel with the
OMICRON CPC 100 File Loader (the complete test files are included on the CD-ROM).
Figure 5-20: 10 kV results for a three-winding transformer (50 Hz)
