Installation Planning Straight Truck Vehicle Types (All Makes)
- J1708: passenger side main fuse panel, behind glove box. Purple (+) and White (-)
wires
- J1939: behind A pillar or ignition switch. Connectors are AMP 282080-1 & 282104-1.
- TTRACS: outside Cab, driver side frame rail PDM (Power Distribution Module), Aux
line
Mack
• MAS110—Install on side wall or under the bunk.
- Install so there is access to a USB port for the
memory stick and access to backup battery.
•DIU110—Install on dash where space allows/customer
preference.
• Cables—Route externally.
- Drill a 1" hole in floor of side box for antenna cable.
• Typical Connection Points
- Power: passenger side dash, behind glove box, BAT post
- Chassis ground: passenger side dash, behind glove box, GND post
- Ignition: passenger side dash, behind glove box, IGN post
- J1708: passenger side dash, behind glove box, J1708 + post = A,J1708 - post = B
- J1939: top of dash, below triangular cover, 2-pin Deutch connector. Yellow (+) and
Green (-) wires.
- TTRACS: outside driver side firewall, 7-way terminal block, Aux Post # 7 blue wire

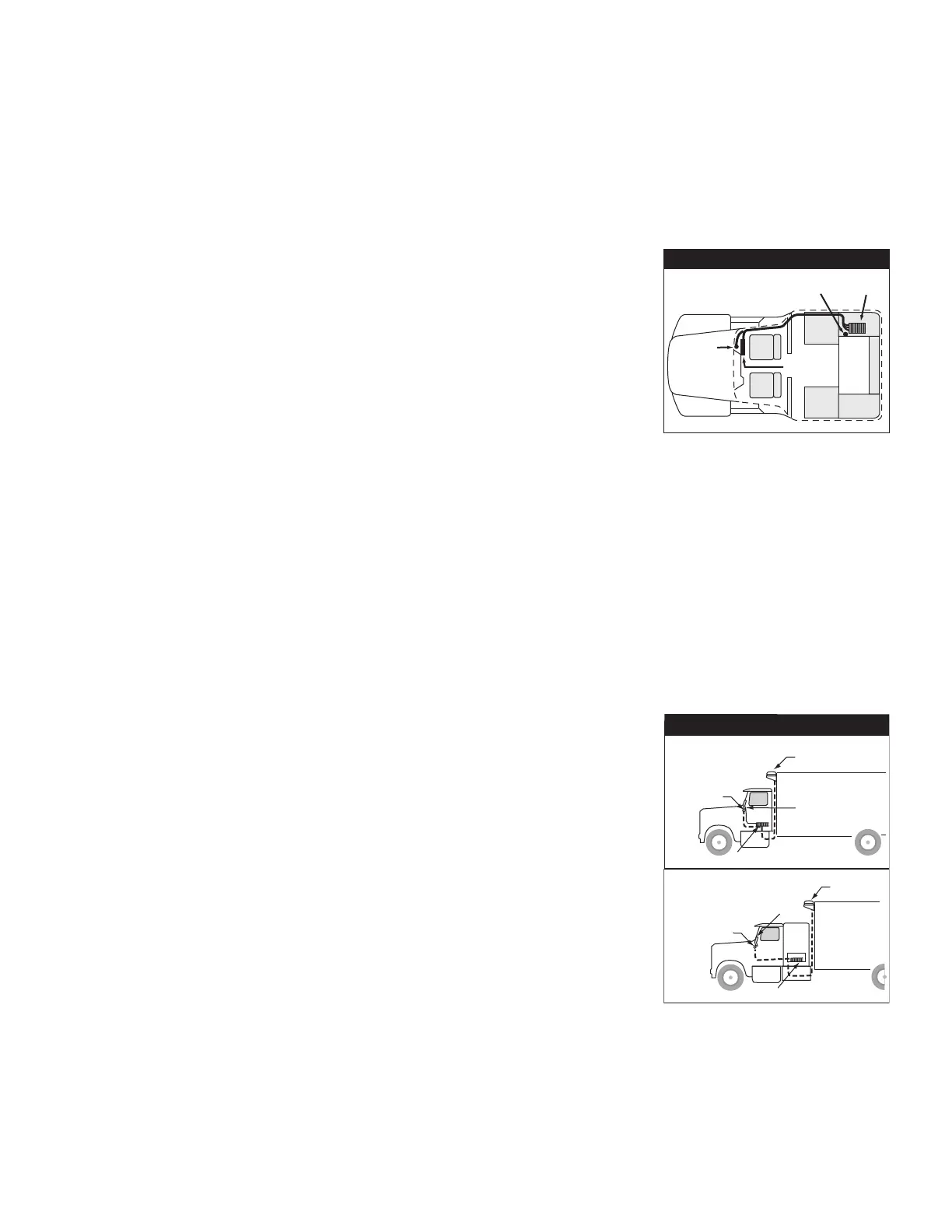

Straight Truck Vehicle Types (All Makes)
• MAS110—Install on back wall or under seat.
- Install so there is access to a USB port for the
memory stick and access to backup battery.
•DIU110—Install on dash where space allows/customer
preference.
• Cables—Route externally or internally.
- Tilt cabs may require longer cables.
- Drill a 1" hole in floor of side box for antenna cable.
Display
Power-
Main
Power Bus
Antenna cable
access hole
MAS
Mack
Straight Trucks
Fixed Cab
Fixed Cab + Sleeper
WIB
WIB
Display
Unit
Display
Unit
MAS
Power Bus/
Key Switch
Power Bus/
Key Switch
MAS
