6 Drive Programming Commands
6 - 42
Drive Programming User’s Manual (I580-E2)
 Example
In the above example, the status of X(00) to X(02) is monitored with the parameter UMon(0) (d025),
and X(02) is output to Y(00).
var  UB(i)
Command Description Argument
Assigns one bit of the value of the internal user
contact to <variable>.
Variable: any variable
(value of the variable is 0 or 1.)
i: internal user contact number
(range 0 to 7)
Format
Flowchart method Text language method

<variable> :  UB(i)

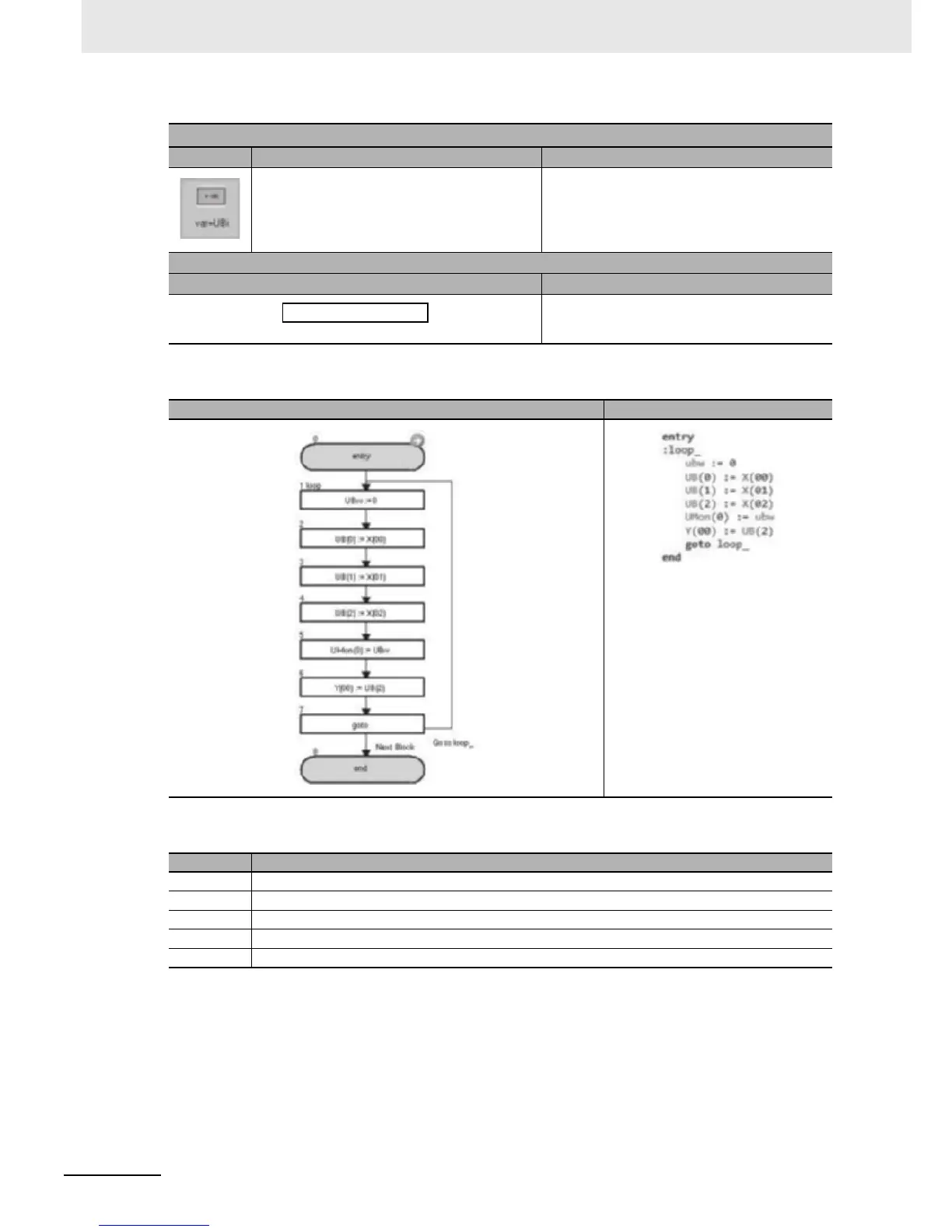

Flowchart Text
Block number Operation
1 Assigns 0 to UBw.
2 to 4 Assigns the variables X(00) to X(02) to the variables UB(0) to UB(2).
5 Assigns UBw to UMon(0).
6 Assigns UB(2) to Y(00).
7 Jumps to block 1: loop_ unconditionally.
<variable> :  UB(i)
