4 Drive Programming Editor
4 - 14
Drive Programming User’s Manual (I580-E2)

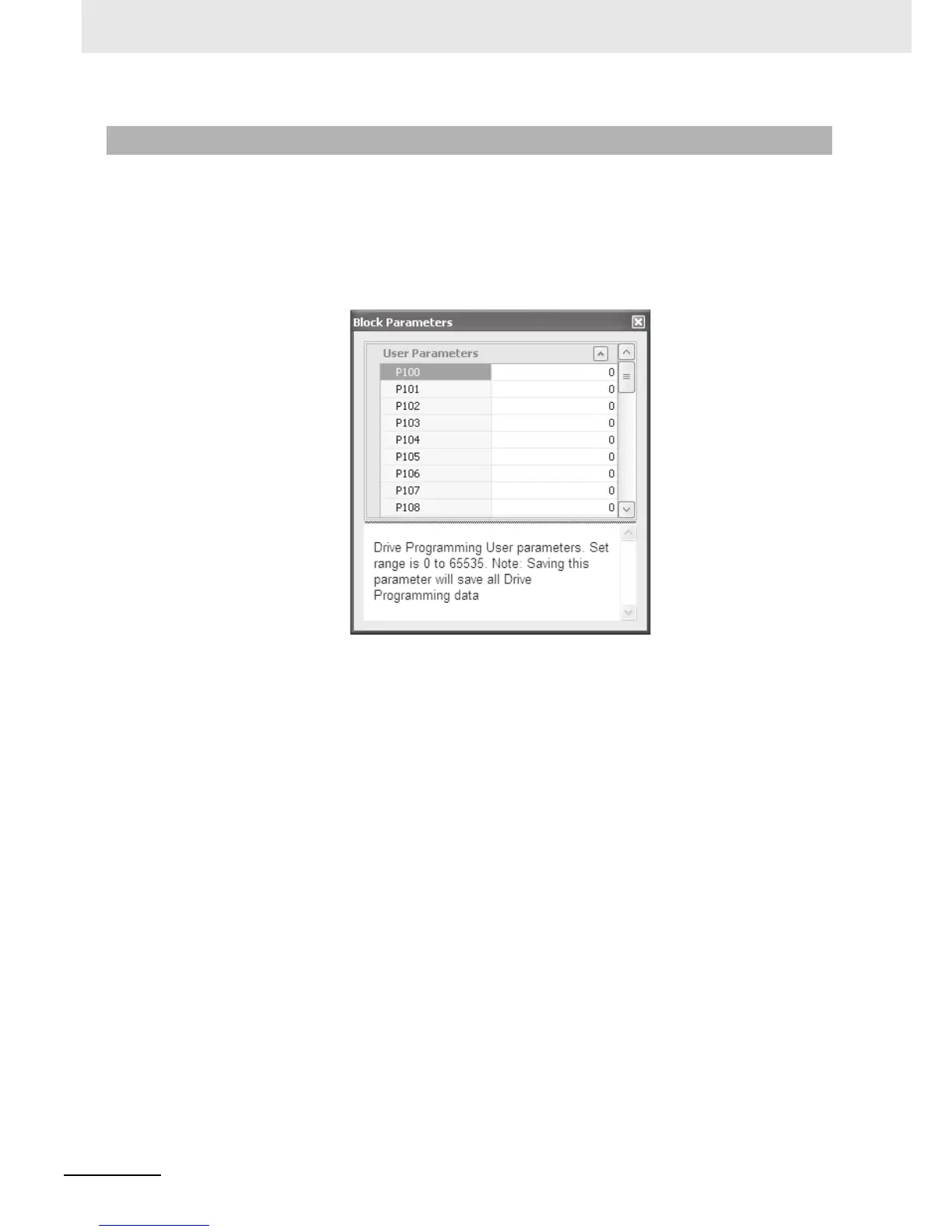

The Block Parameters window allows you to edit Drive Programming user parameters which act as
variables of the program. The displayed parameters are organized in categories.
The Block Parameters is displayed when the Drive Programming Editor is started. You can also show
or hide it by clicking [Drive Programming] - [Block Parameters] in the [View] Menu.
The Block Parameters window is displayed by default at the right side of the CX-Drive.
You can separate the window by double-clicking the title bar (wide frame of the window).
To change the value of a parameter, place the cursor at its row and click on the edition box to the right
of its number. Enter the new value. A warning will be displayed if the entered value exceeds the valid
range.
At the lower part of the window, a help text for the user parameters is displayed.
4-2-5 Block Parameters Window
