Omron CP1L CPU User Manual

A
A-4 CP1L Programming Examples
116 SYSMAC CP1L Getting Started Guide
Appendix
 INFO

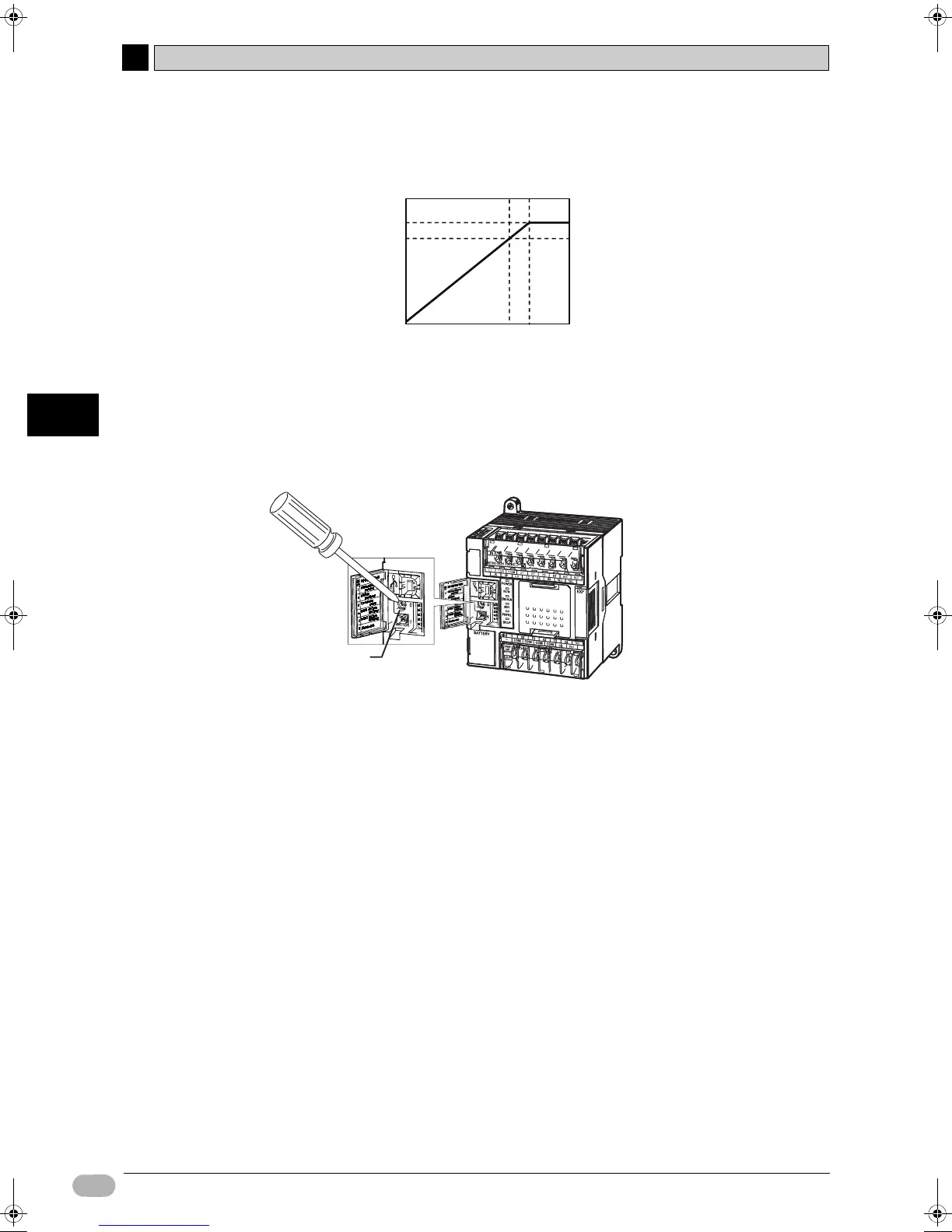

zRelationship between Input Voltage and A643's PV
The maximum input voltage is 11VDC. Do not apply voltages any greater.
zUsing the Analog Adjuster on CP1L
Settings can be changed by using the analog adjuster on CP1L instead of using an
external analog settings input. The analog adjuster can set the auxiliary area
(A642CH) to any value in the 0 to 255 range (0 to FF Hex).
10 0 11
281
0
256
Value in A643CH (BCD)
Input Voltage (V
)
100(Hex)
Philips screwdriver
Analog adjuster
W07E-EN-02+CP1L+GettingStartedGuide.book Seite 116 Montag, 15. September 2008 11:15 11
