5-1 Going Online
5
5
SYSMAC CP1L Getting Started Guide 79
5
Transferring and Debugging Programs
Note If the system fails to go online, check the PLC type setting and communication
settings.
To check the settings, double-click [NewPLC1[CP1L]Offline] in the project tree. For
details on the settings, refer to 4-5-1 Creating New Projects.
5-1-1 Setting the CP1L Clock
The CP1L clock should be set to match your time zone. Use CX-Programmer to
set the time. If the time on CP1L is not set properly, the error log will not be
displayed correctly.
1. In CX-Programmer, open an existing project.
For details on opening a project, refer to 4-6-3 Loading Programs.

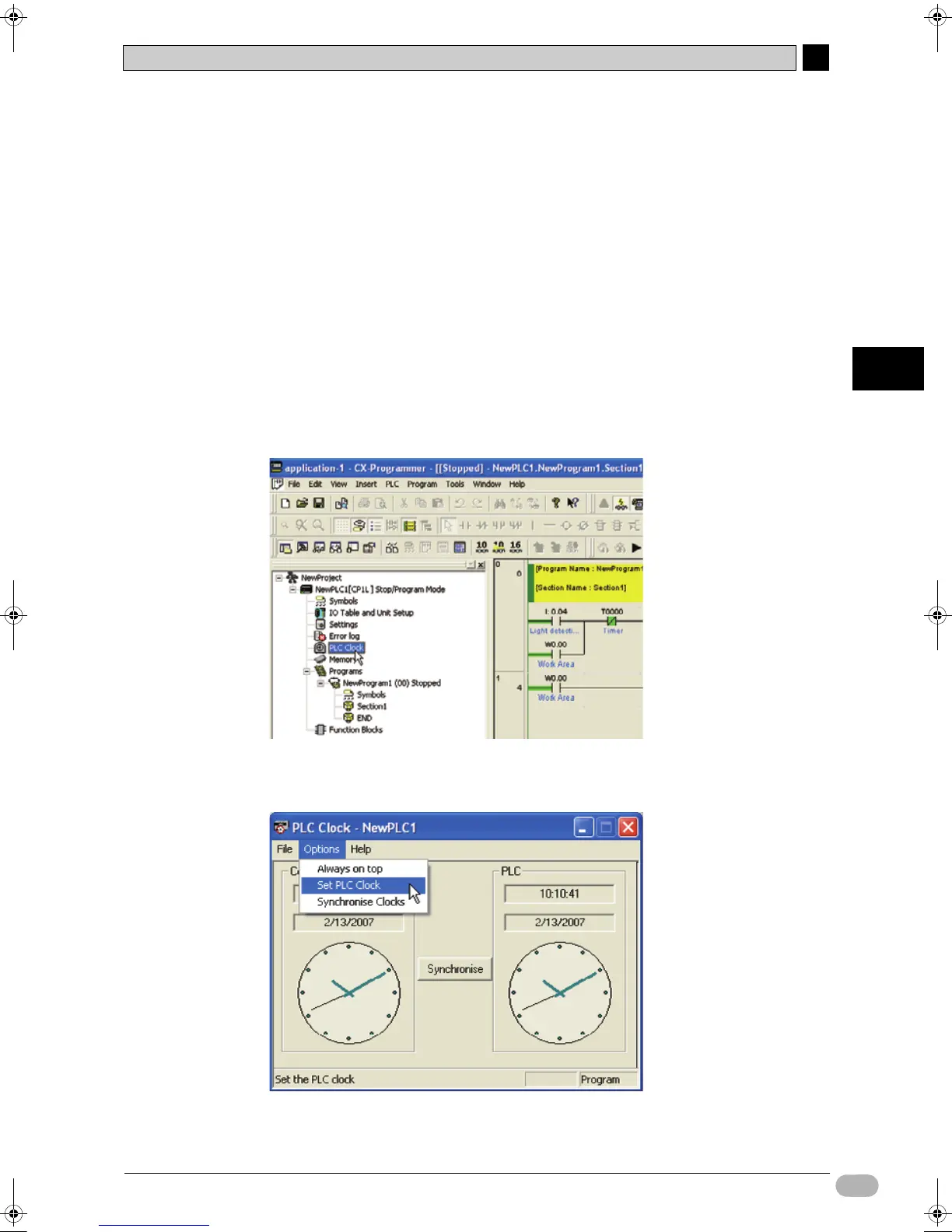

2. Double-click [PLC Clock].
The PLC Clock dialog box will be displayed.
3. Select [Options] - [Set PLC Clock] from the menu.
The Set PLC Clock dialog box will be displayed.
W07E-EN-02+CP1L+GettingStartedGuide.book Seite 79 Montag, 15. September 2008 11:15 11
