4-5 Inputting Programs
4
4
66 SYSMAC CP1L Getting Started Guide
Creating Programs
4-5-6 Inputting Auxiliary Areas
Auxiliary area is a relay with a specific purpose.
The first cycle flag will be ON for only 1 cycle after the PLC has been powered ON.
Here, it will be used to reset the counter when CP1L is powered ON.

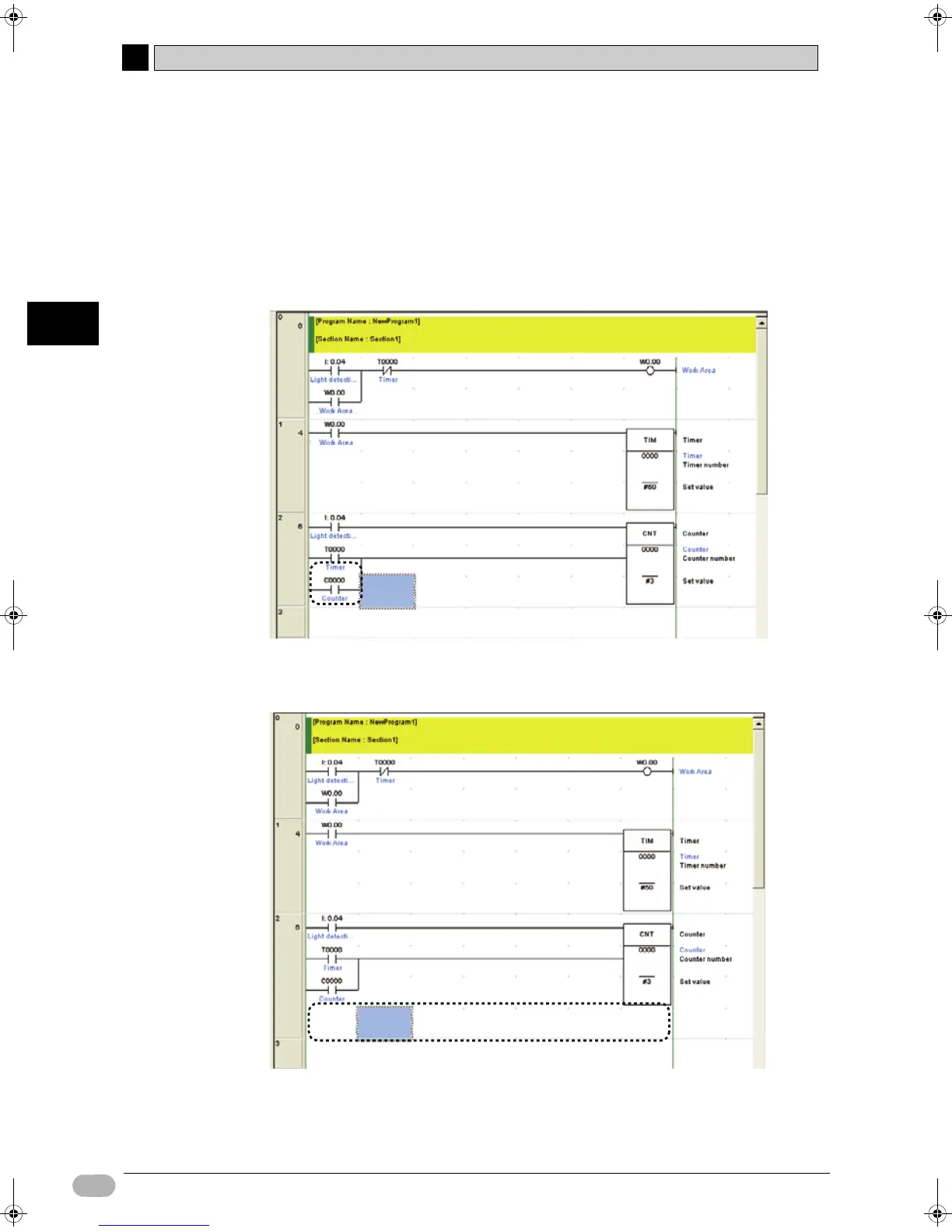

1. Press the [W] key. Input an OR circuit contact "C0000". Then, press the
[Enter] key while the Edit Comment dialog box is up.
For details on inputting a contact, refer to 4-5-2 Inputting Contacts.
2. Press the [Enter] key.
A space for inserting an OR circuit will be created.
W07E-EN-02+CP1L+GettingStartedGuide.book Seite 66 Montag, 15. September 2008 11:15 11
