4-5 Inputting Programs
4
4
SYSMAC CP1L Getting Started Guide 61
Creating Programs
4-5-4 Inputting Timers

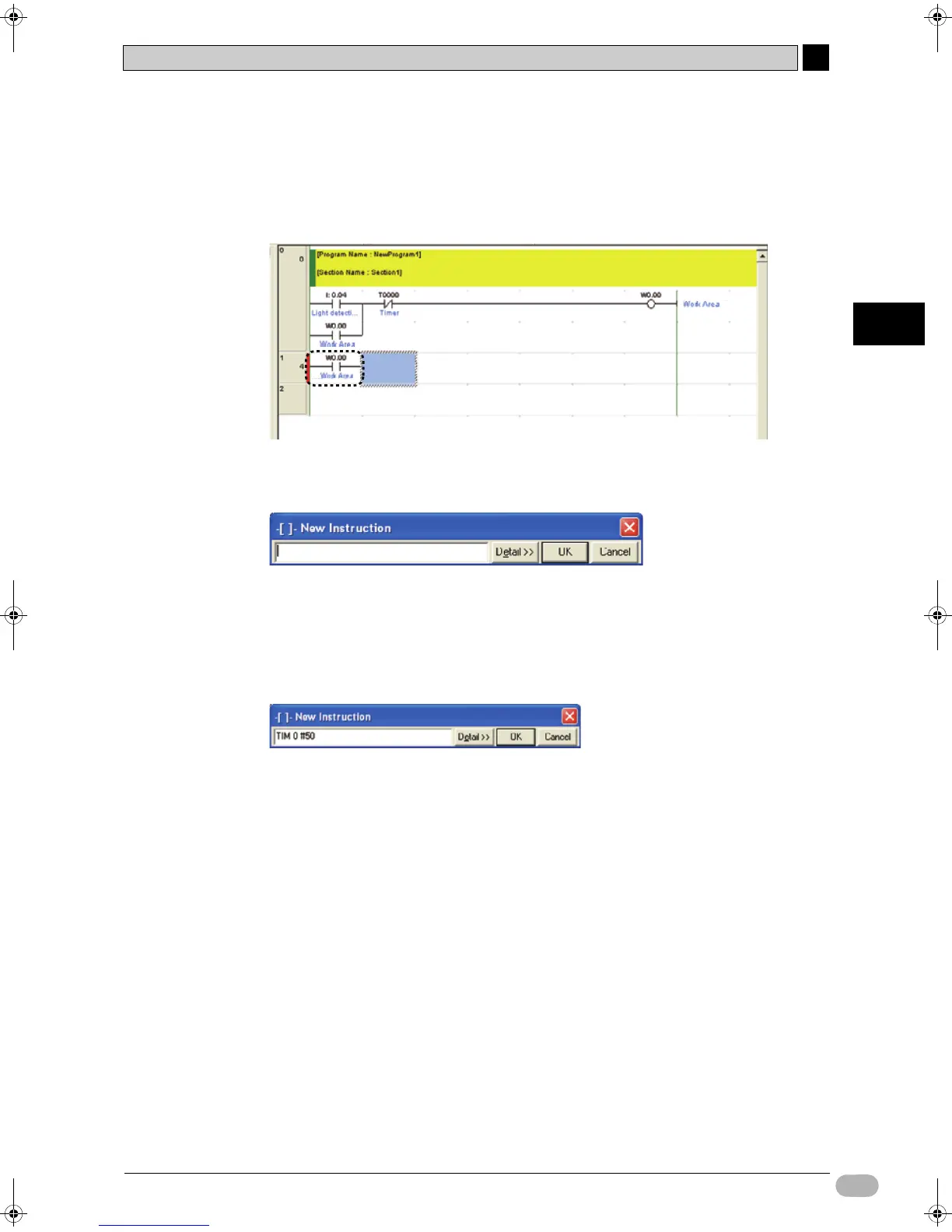

1. Press the [C] key. Input contact "W000". Then, press the [Enter] key
while the Edit Comment dialog box is up.
For details on inputting a contact, refer to 4-5-2 Inputting Contacts.
2. Press the [I] key.
The New Instruction dialog box will be displayed.
3. Input timer instruction "TIM 0 #50". Press the [Enter] key.
"TIM 0 #50" is entered. The Edit Comment dialog box is displayed with the I/O
comment already entered.
"TIM 0 #50" indicates a 5.0 second delay timer, with a timer completion flag of
T0000.
