Omron CP1L CPU - A-4-7 Using Inverters for Speed Control (1)

A
A-4 CP1L Programming Examples
SYSMAC CP1L Getting Started Guide 143
Appendix

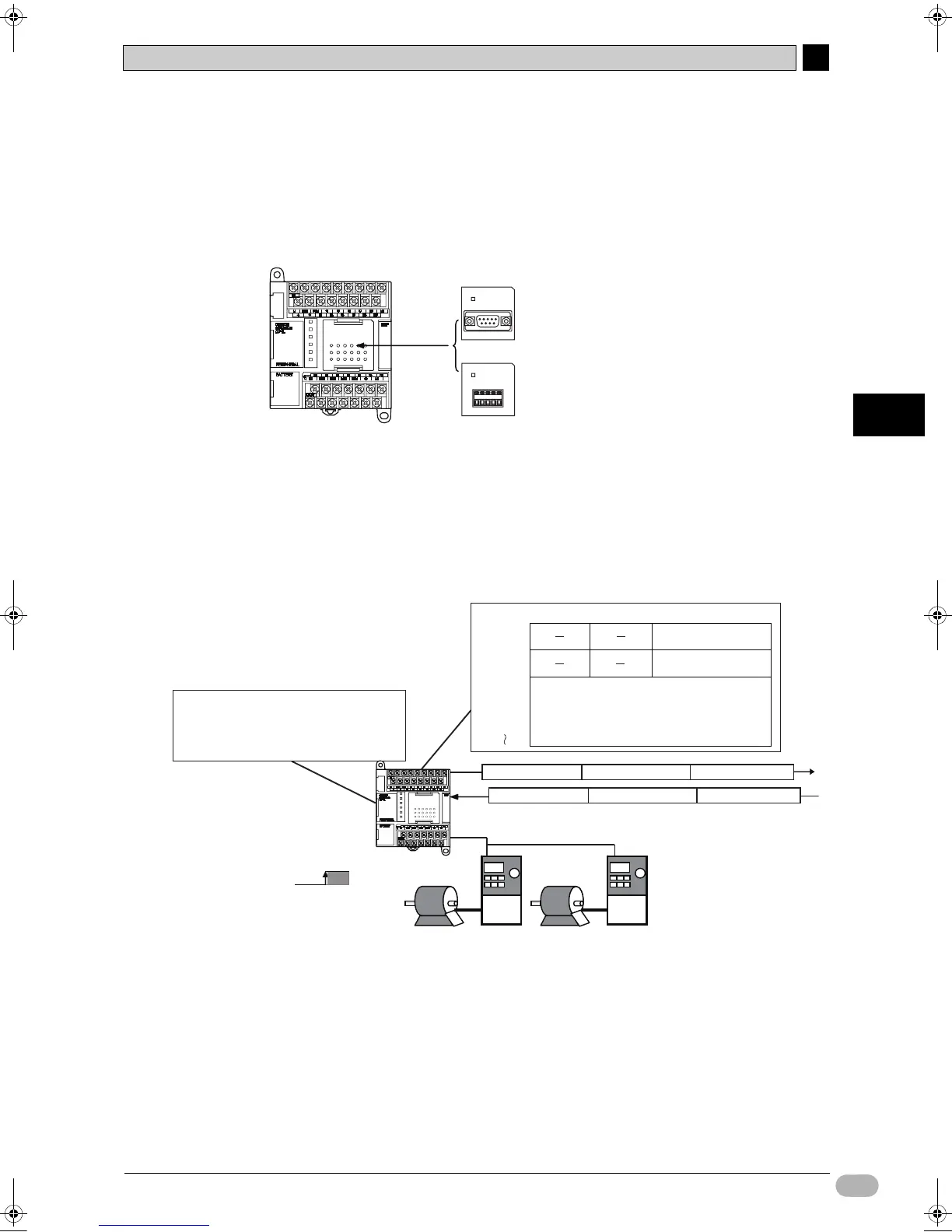

A-4-7 Using Inverters for Speed Control (1)
 Functions Used
zModbus-RTU Easy Master Function
By using Modbus-RTU easy master function, Modbus-compliant slave devices (i.e.
inverters) can be controlled easily via serial communication.
To perform serial communication on CP1L, install an optional serial communication
board (RS232C or RS422A/485). 14/20-point I/O units can have 1 optional serial
communication board installed. 30/40-point I/O units can have up to 2 boards
installed.
The Modbus-RTU easy master function allows for easy communication with
components connected via a serial connection board.
In the DM fixed allocation words for Modbus-RTU easy master, allocate the slave
address, function, and data to the Modbus slave device. After the allocations have
been made, Modbus-RTU commands can be sent by turning the software switch ON.
Received responses are automatically stored in the DM fixed allocation words.
Note Modbus-RTU easy master execution bits and DM Fixed Allocation words depend
on unit type, 14/20-point I/O units or 30/40-point I/O units. For details, refer to CP
Series CP1L CPU Unit User's Manual (W462).
COMM
COMM
Option
board slot
CP1L
RS-232C
option board
CP1W-CIF01
RS-422A/485
option board
CP1W-CIF11
Modbus-RTU easy master function
execution switch A640 CH bit 00
(for port 1)
Describe Modbus-RTU commands in the
DM fixed allocation words.
Communication can then be enabled by
simply turning ON the software switch
A640 CH bit 00.
Slave address
FUNCTION code
Communication data
Communication data bytes
D32300
D32301
D32302
D32303
15 08 07 00
Modbus-RTU
OMRON inverter
CIMR-V7 / CIMR-F7
CP1L
Slave address
FUNCTION code
Communication data
Slave address
FUNCTION code
Communication data
