5-2 Adjusting/Debugging Online
5
5
90 SYSMAC CP1L Getting Started Guide
Transferring and Debugging Programs
5-2-3 Changing Timer Settings
Timer settings can be changed to better suit operating conditions.
1. Change CP1L to the MONITOR or PROGRAM operating mode.

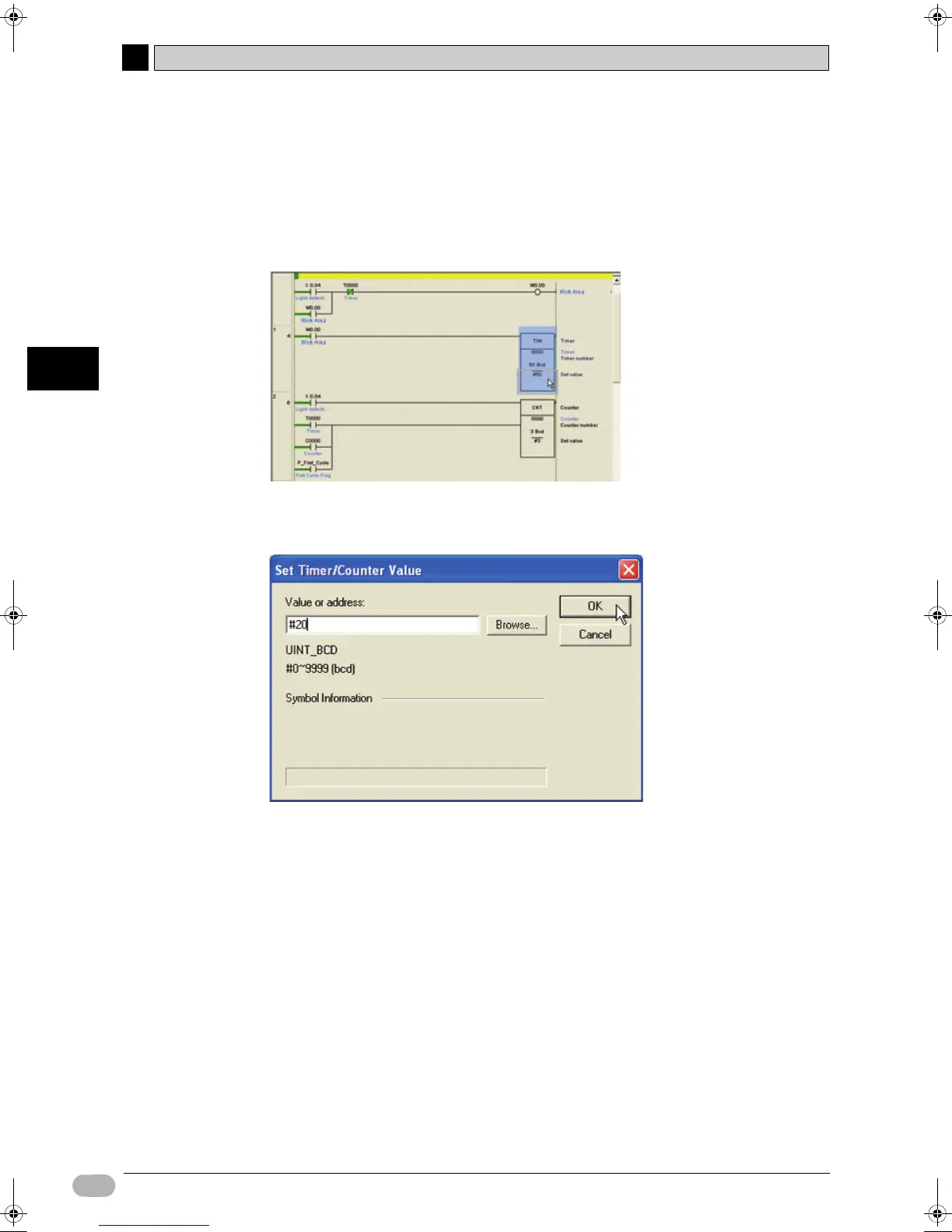

2. Double-click the timer setting to be changed.
The Set Timer/Counter Value dialog box will be displayed.
3. Input the new value. Click [OK].
The timer setting will be updated.
5-2-4 Searching
 Address Reference Tool
The address reference tool displays which instructions are using the address being
pointed to with the cursor. It also allows jumping to another instruction with the
same address.
The address reference tool will display the following items:
• Address at the cursor position
• Variables (local, global)
• Program name, section name
• Program address (step)
• Instruction using the address
W07E-EN-02+CP1L+GettingStartedGuide.book Seite 90 Montag, 15. September 2008 11:15 11
