4-7 Editing Programs
4
4
SYSMAC CP1L Getting Started Guide 75
Creating Programs

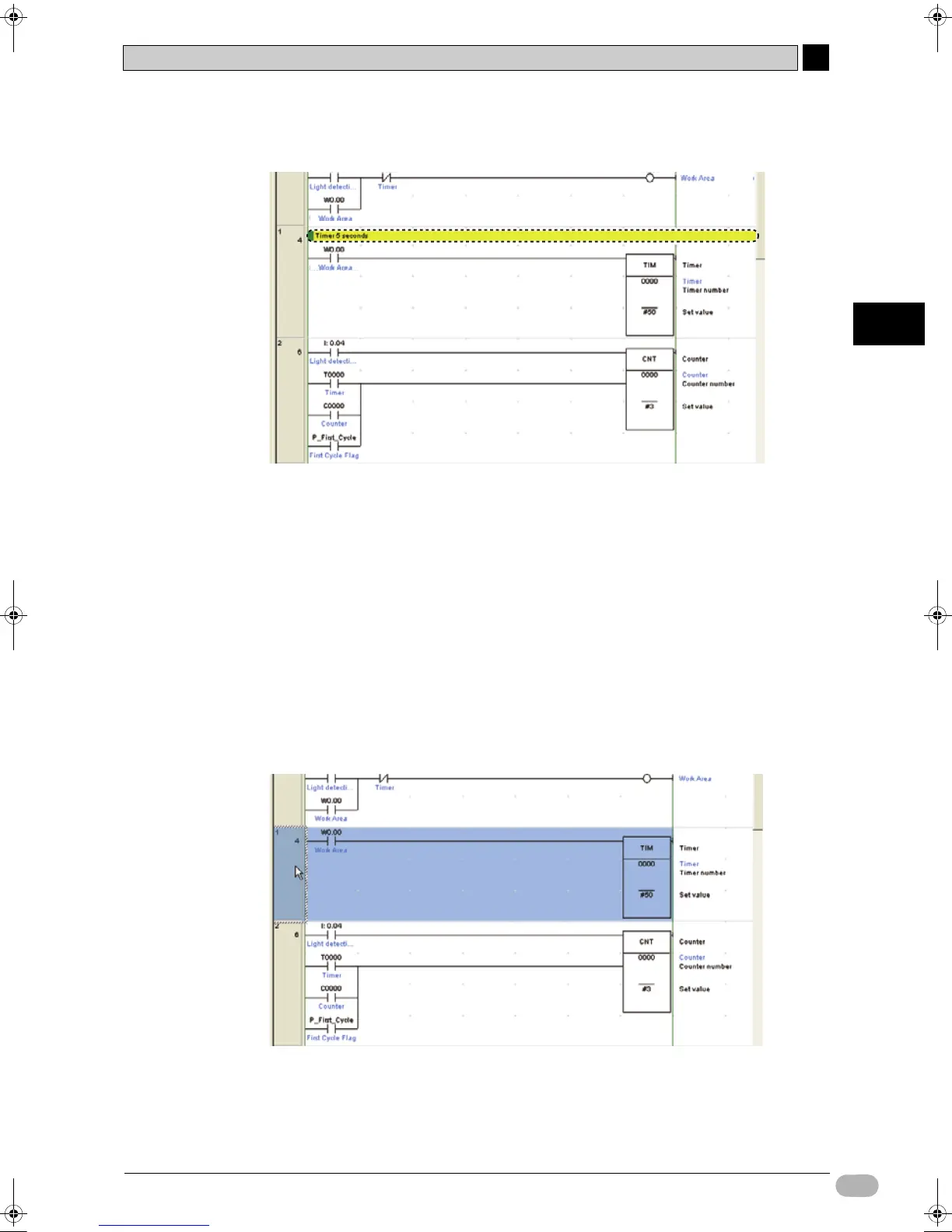

3. Close the Rung Properties dialog box.
The entered rung comment will be displayed on the ladder program.
4-7-3 Editing Rungs
Created ladder programs can be edited.
 Deleting
zContacts/Instructions
1. Place the cursor on a contact or on an instruction. Press the [Delete] key.
The selected contact or instruction will be deleted.
zRungs
1. Click a rung header.
The whole rung will be selected.
2. Press the [Delete] key.
The selected rung will be deleted.
