4-5 Inputting Programs
4
4
56 SYSMAC CP1L Getting Started Guide
Creating Programs
4-5-2 Inputting Contacts
Input a contact. For details on ladder programs, refer to 4-2-2 Ladder Program.
Inputting Contacts

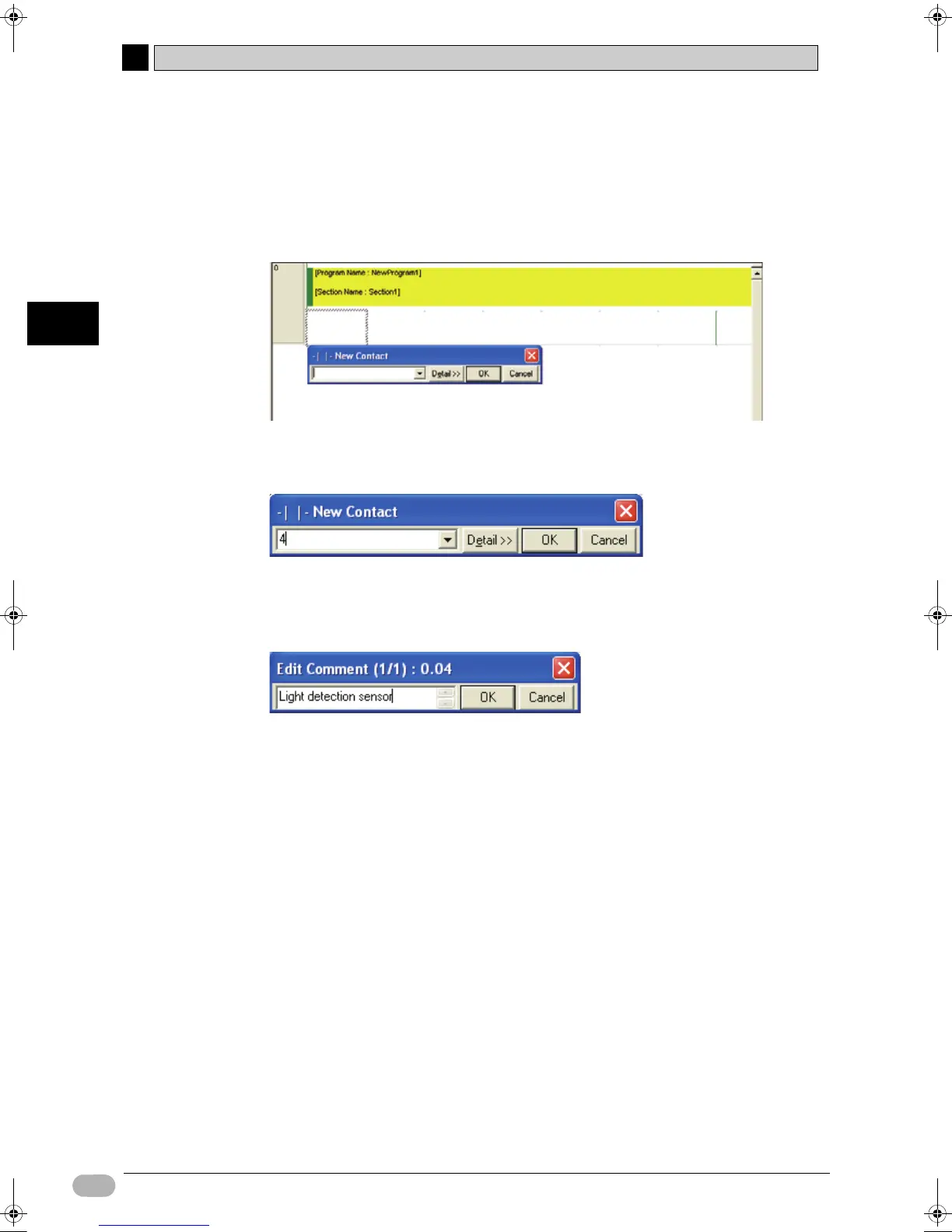

1. Press the [C] key.
The New Contact dialog box will be displayed.
2. Input address "4". Press the [Enter] key.
"4" is entered. The Edit Comment dialog box will be displayed.
3. Input "Light detection sensor" as the I/O comment. Press the [Enter] key.
A contact representing input from the light detection sensor will be displayed on the
ladder program.
Next, input an OR circuit.
