4-5 Inputting Programs
4
4
SYSMAC CP1L Getting Started Guide 57
Creating Programs

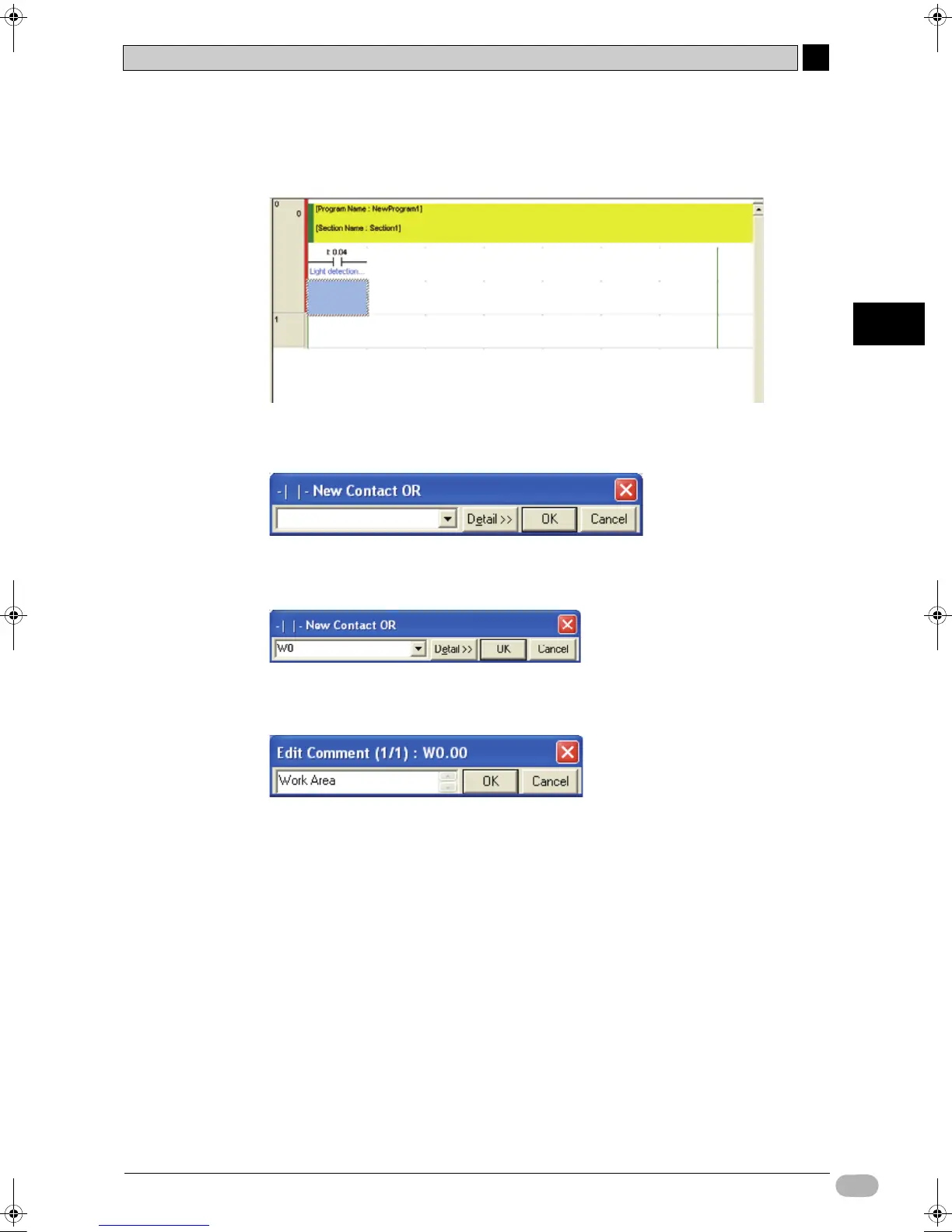

Inputting OR Circuits
1. Place the cursor on the program. Press the [Enter] key.
A space for inserting an OR circuit will be created.
2. Press the [W] key.
The New Contact OR dialog box will be displayed.
3. Input address "W0". Press the [Enter] key.
"W0" is entered. The Edit Comment dialog box will be displayed.
4. Input "Work Area" as the I/O comment. Press the [Enter] key.
An OR circuit representing the work area contact will be displayed.
Next, input a closed contact.
W07E-EN-02+CP1L+GettingStartedGuide.book Seite 57 Montag, 15. September 2008 11:15 11
