4-5 Inputting Programs
4
4
58 SYSMAC CP1L Getting Started Guide
Creating Programs

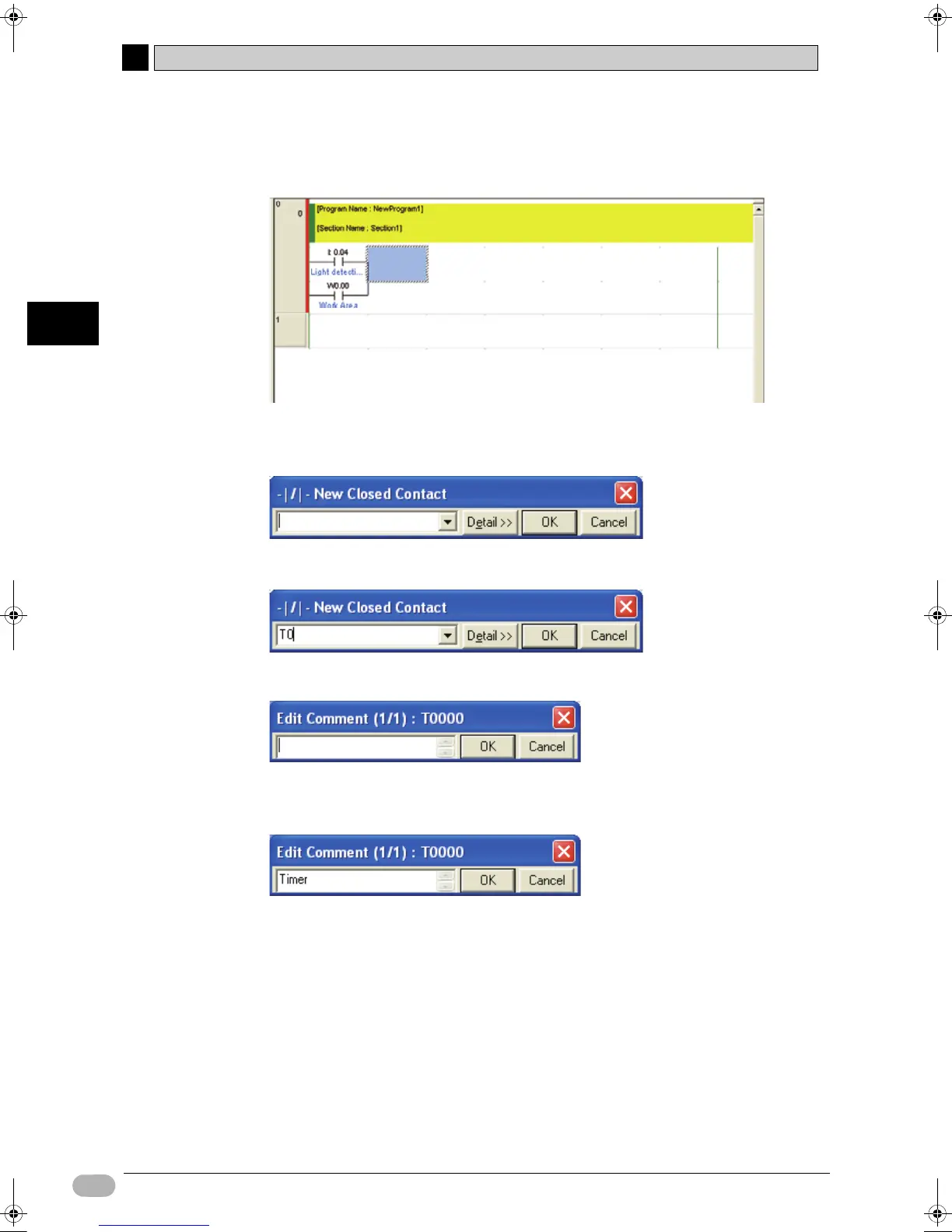

Inputting Closed Contacts
1. Press the up arrow key.
The cursor is moved upward.
2. With the cursor in the up position, press the [/] key.
The New Closed Contact dialog box will be displayed.
3. Input address "T0". Press the [Enter] key.
"T0" is entered. The Edit Comment dialog box will be displayed.
4. Input "Timer" as the I/O comment. Press the [Enter] key.
An AND circuit representing the timer closed contact will be displayed.
Next, input a work area output.
W07E-EN-02+CP1L+GettingStartedGuide.book Seite 58 Montag, 15. September 2008 11:15 11
