Creating Programs
4-5-7 Inputting Differentiated Up Contacts

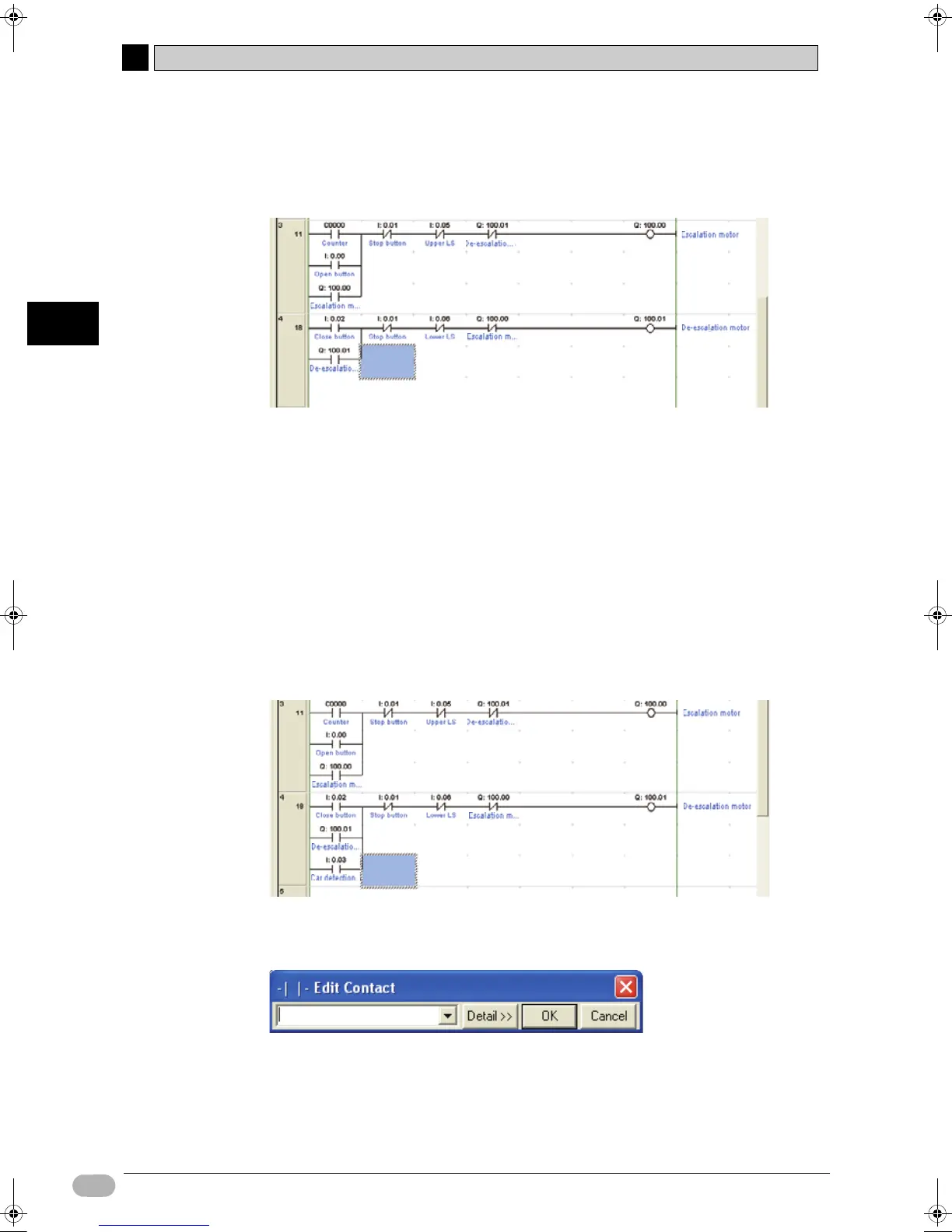

1. While referring to 4-2-2 Ladder Programs, enter a ladder program,
extending to de-escalation motor contact,
"10001".
2. Press the [Enter] key.
A space for inserting an OR circuit will be created.
3. Press the [W] key.
The New Contact OR dialog box will be displayed.
4. Input address "3". Press the [Enter] key.
The Edit Comment dialog box will be displayed.
5. Input "Car detection sensor" as the I/O comment. Press the [Enter] key.
A contact representing input from the car detection sensor will be displayed as an
OR circuit.
6. Double-click contact "003".
The Edit Contact dialog box will be displayed.
