4-5 Inputting Programs
4
4
SYSMAC CP1L Getting Started Guide 69
Creating Programs

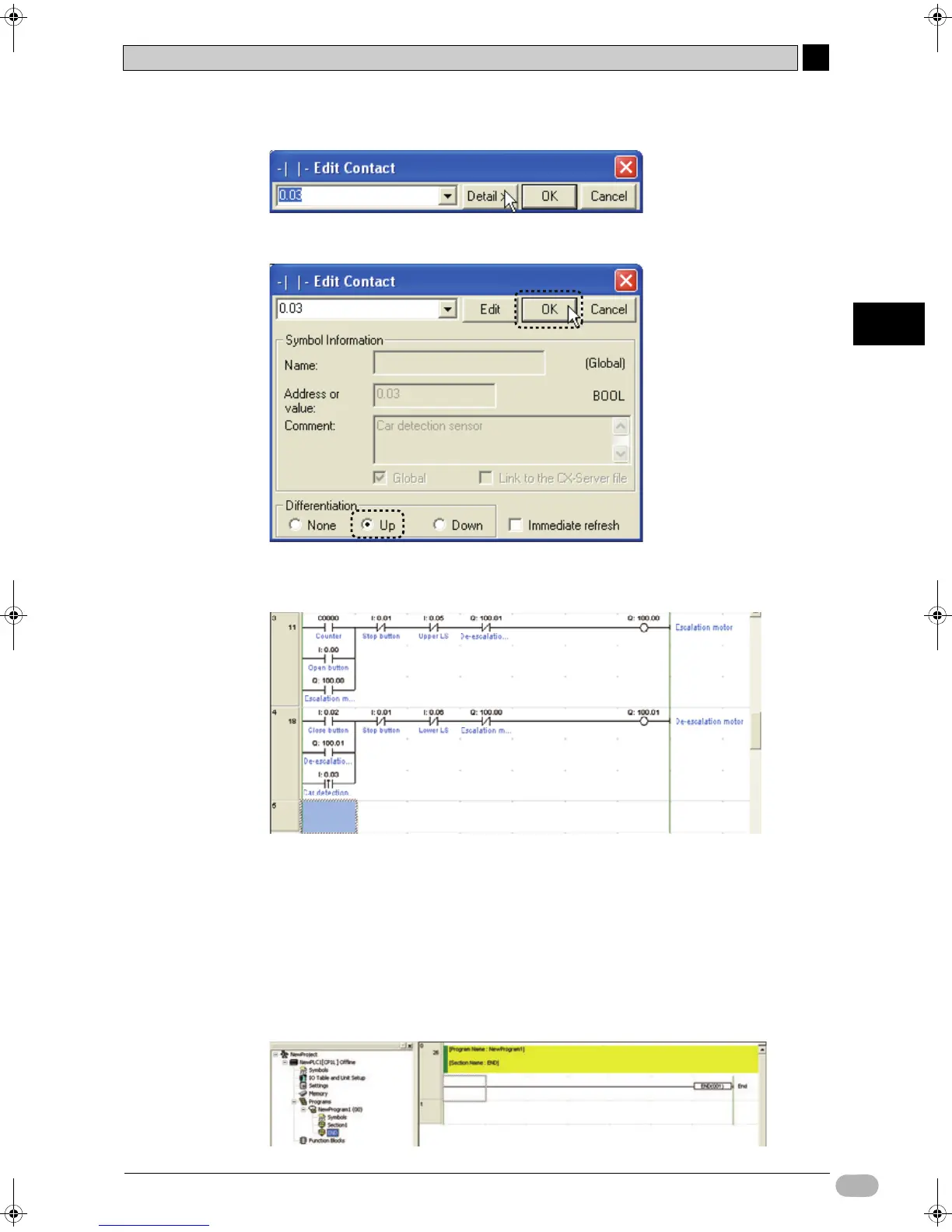

7. Click [Detail].
8. Select [Up] for Differentiation. Click [OK].
An upward arrow representing a differentiated up condition will be displayed on the
contact.
4-5-8 END Instruction
Ladder programs must be terminated with an END instruction.
When a new program is created in CX-Programmer, a section inclusive of an END
instruction will be inserted automatically. Hence, there is no need to input an END
instruction manually.
To confirm the ladder program containing only the END instruction, double-click the
[END] section.
W07E-EN-02+CP1L+GettingStartedGuide.book Seite 69 Montag, 15. September 2008 11:15 11
