A-4 CP1L Programming Examples
140 SYSMAC CP1L Getting Started Guide
Appendix

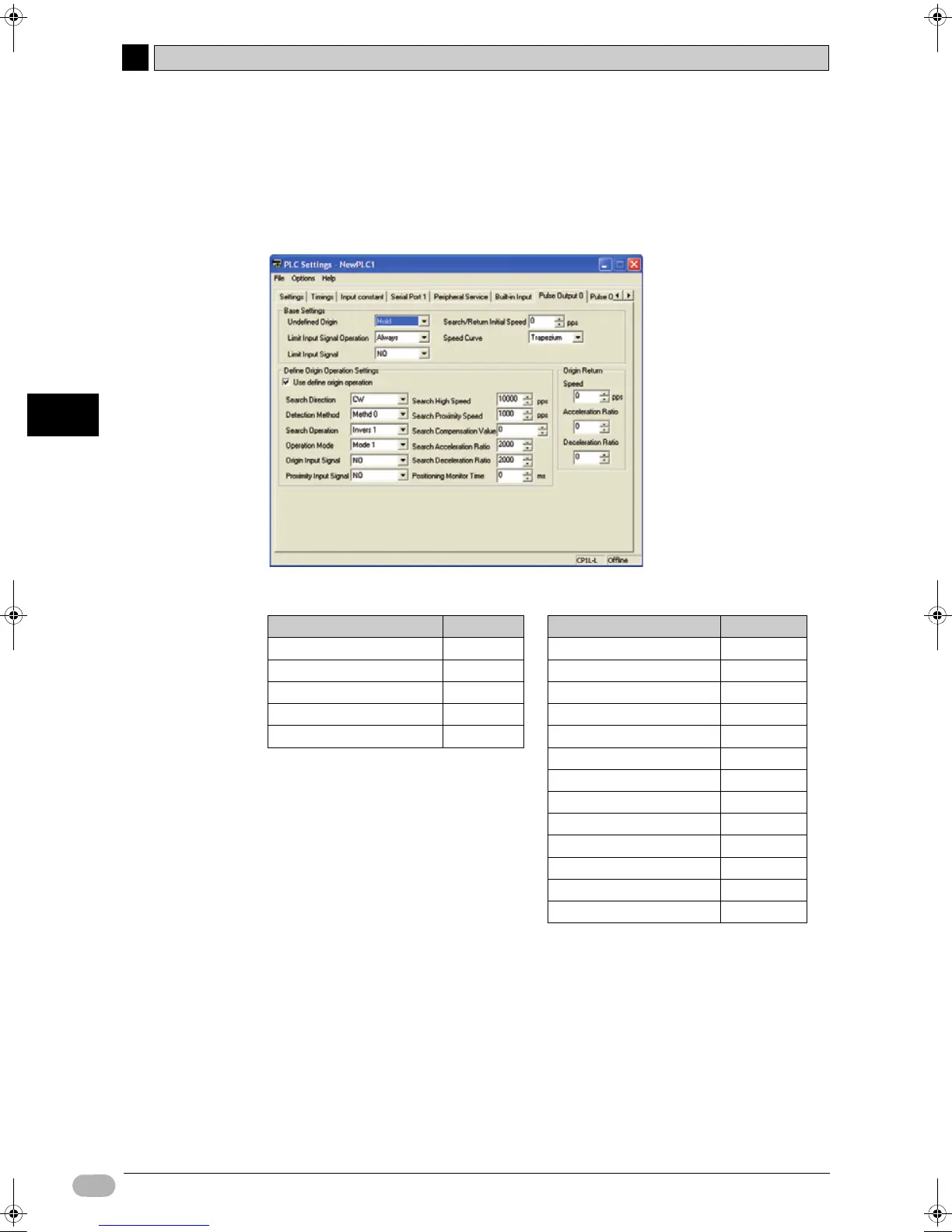

zPLC Setup
Specify the settings for pulse output 0.
1. Open the PLC Settings dialog box.
2. Click the Pulse Output 0 tab.
3. Set the following settings.
4. Close the PLC Settings dialog box.
5. To apply changes made to the PLC settings, turn the PLC power ON.
Base Settings Origin Search
Item Setting Item Setting
Undefined Origin Hold Use define origin operation Use
Limit Input Signal Operation Always Search Direction CW
Limit Input Signal NO Detection Method Methd 0
Search/Return Initial Speed 0pps Search Operation Invers 1
Speed Curve Trapezoidal Operating Mode Mode 1
Origin Input Signal NO
Proximity Input Signal NO
Search High Speed 10000pps
Search Proximity Speed 1000pps
Search Compensation Value 0
Search Acceleration Ratio 2000
Search Deceleration Ratio 2000
Positioning Monitor Time 0ms
W07E-EN-02+CP1L+GettingStartedGuide.book Seite 140 Montag, 15. September 2008 11:15 11
