2-3 I/O Allocation for the Shutter Control System
2
2
24 SYSMAC CP1L Getting Started Guide
Designing Systems
2-3 I/O Allocation for the Shutter Control System

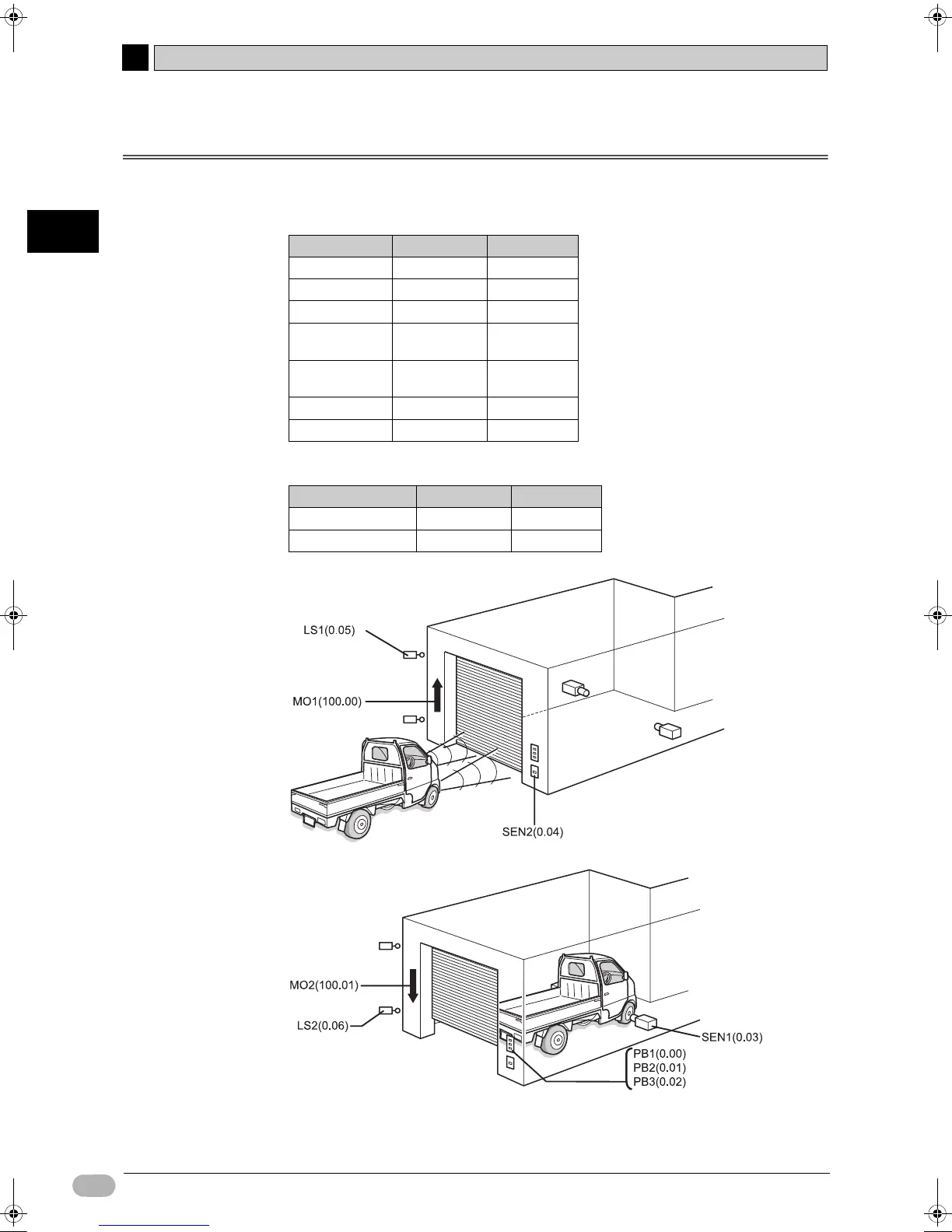

I/O relays on CP1L are allocated to contacts as defined by following.
zInputs
zOutputs
Device Contact Address
OPEN button PB1 0.00
STOP button PB2 0.01
CLOSE button PB3 0.02
Car detection
sensor
SEN1 0.03
Light detection
sensor
SEN2 0.04
Upper limit LS LS1 0.05
Lower limit LS LS2 0.06
Device Contact Address
Escalation motor MO1 100.00
De-escalation motor MO2 100.01
