SYSMAC CP1L Getting Started Guide 31

3-2 Mounting onto DIN Tracks

Mounting and Wiring

3-2 Mounting onto DIN Tracks

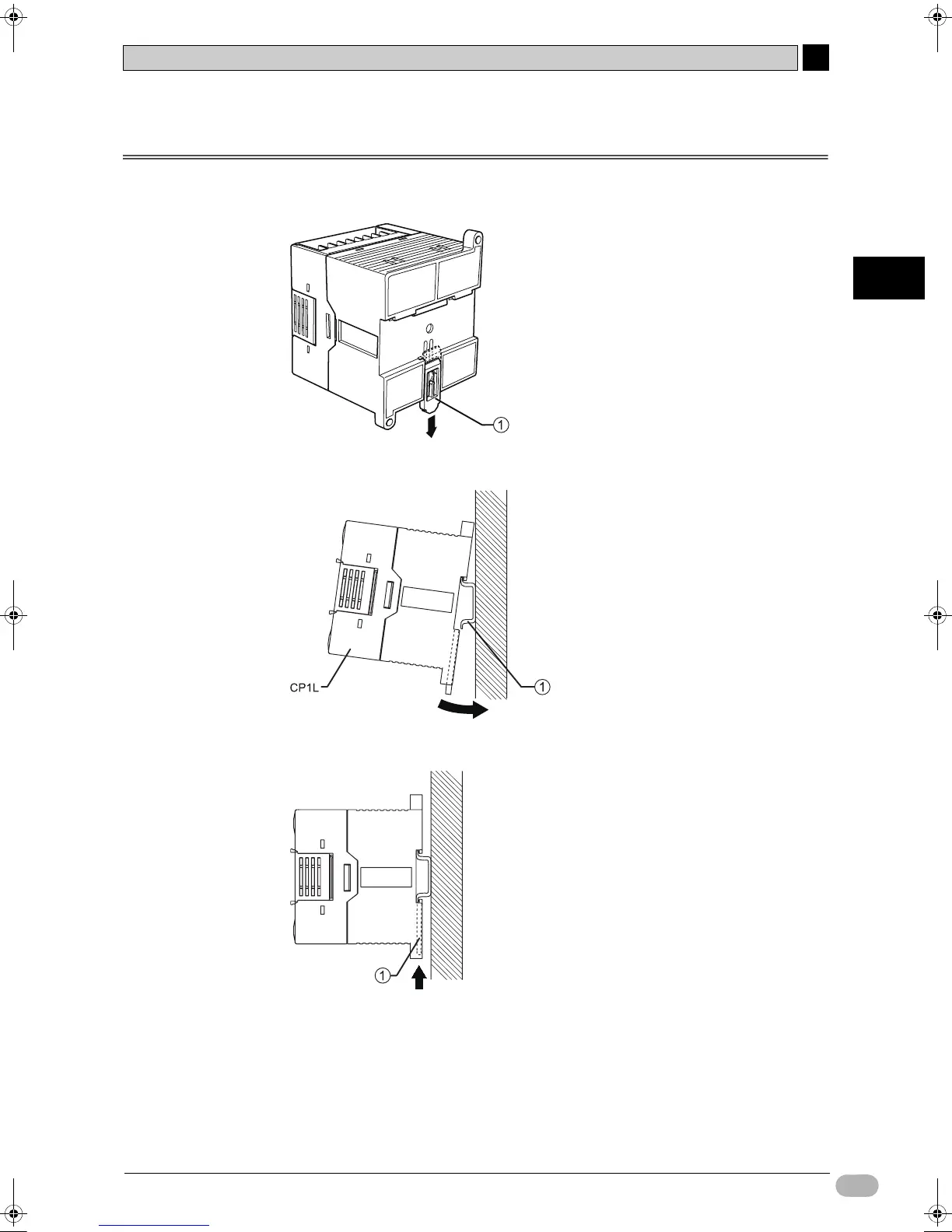

This section explains how to mount CP1L onto a DIN track.

1. Pull out the DIN track mounting pin (1).

2. Hook the rear panel of CP1L onto the DIN track (1), as shown.

3. Push in the DIN track mounting pin (1) to secure CP1L.

W07E-EN-02+CP1L+GettingStartedGuide.book Seite 31 Montag, 15. September 2008 11:15 11
