5-1 Going Online
5
5
82 SYSMAC CP1L Getting Started Guide
Transferring and Debugging Programs

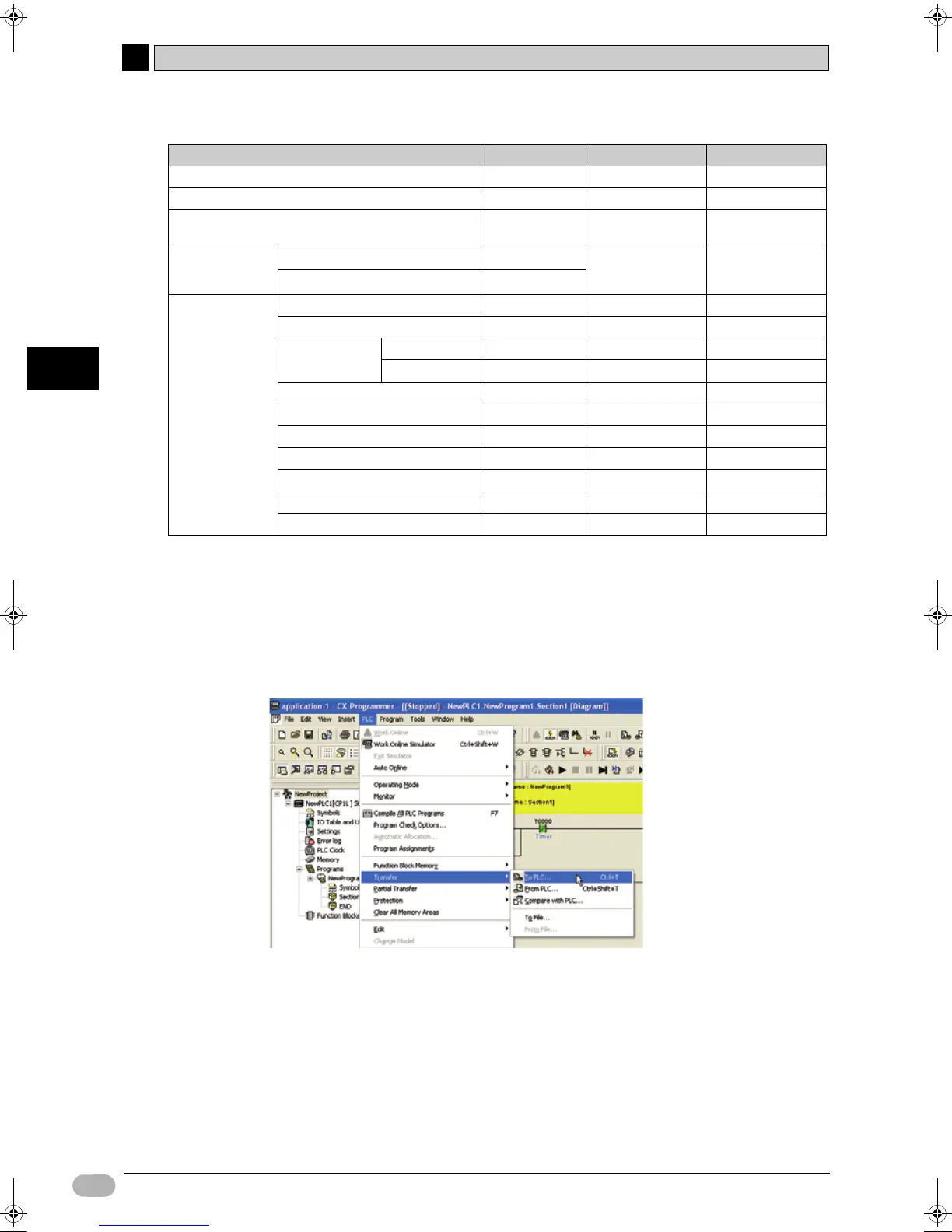

The following table lists the status and available operations for each mode.
5-1-3 Transferring Programs
A program created with CX-Programmer can be transferred to CP1L.
1. Select [PLC] - [Transfer] - [To PLC] from the main menu.
The Download Options dialog box will be displayed.
Operating Mode PROGRAM RUN MONITOR
Program status Stopped Running Running
I/O refreshing Execute Execute Execute
External I/O status OFF Depends on
program
Depends on
program
I/O memory Non-holding memory Cleared
Depends on
program
Depends on
program
Holding memory Held
Operations from
CX-Programmer
I/O memory monitoring OK OK OK
Program monitoring OK OK OK
Program
transfer
From PLC OK OK OK
To PLC OK X X
Compiling OK X X
PLC setup OK X X
Changing program OK X OK
Force-setting/Force-resetting OK X OK
Changing timer/counter SV OK X OK
Changing timer/counter PV OK X OK
Changing I/O memory PV OK X OK
W07E-EN-02+CP1L+GettingStartedGuide.book Seite 82 Montag, 15. September 2008 11:15 11
