4-5 Inputting Programs
4
4
SYSMAC CP1L Getting Started Guide 67
Creating Programs
3. Press the left arrow key.
4. Press the [W] key.

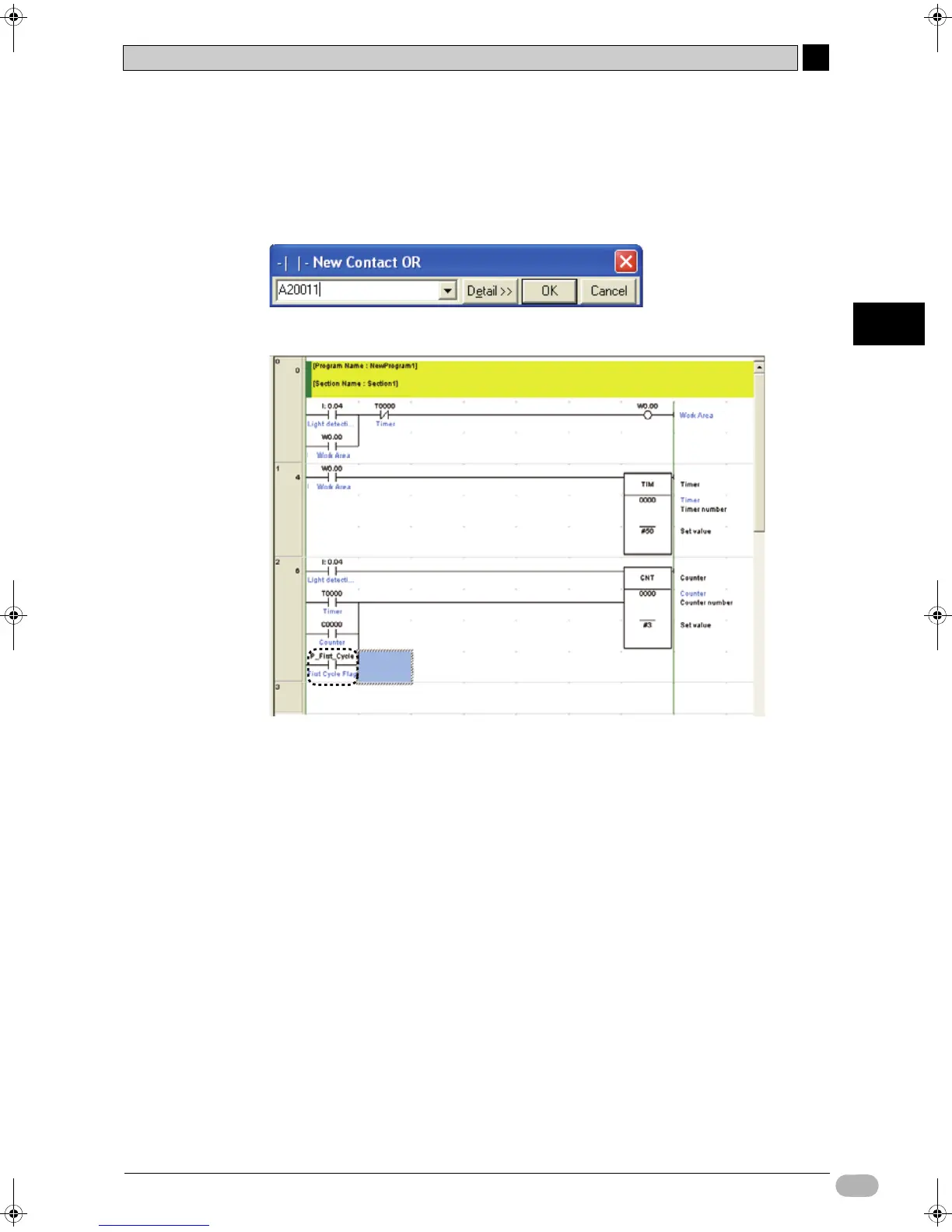

The New Contact OR dialog box will be displayed.
5. Input address "A20011". Press the [Enter] key.
A first cycle flag will be displayed on the ladder program.
