A-4 CP1L Programming Examples

146 SYSMAC CP1L Getting Started Guide

Appendix

zPLC Setup

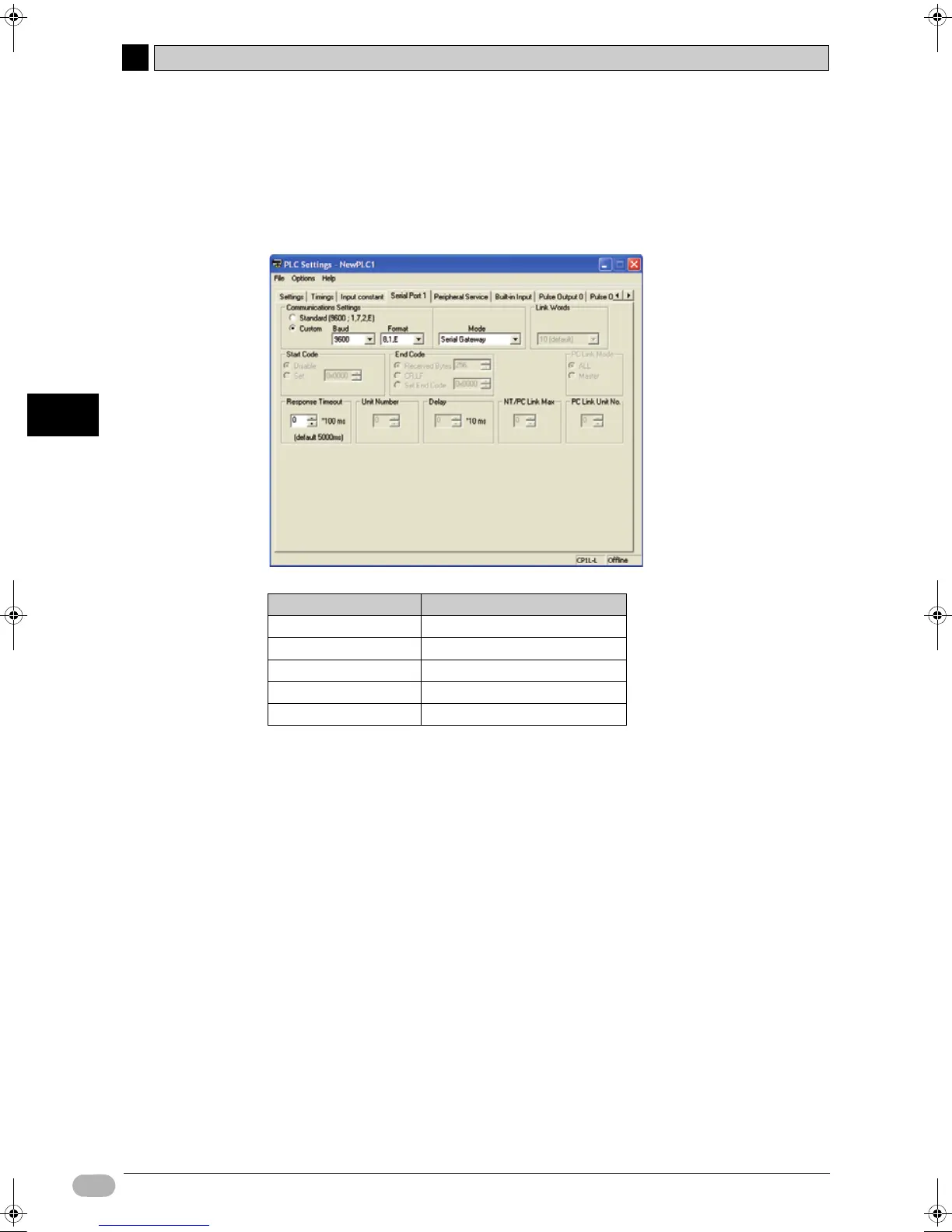

Configure serial port 1.

1. Open the PLC Settings dialog box.

2. Click the Serial Port 1 tab.

3. Set the following settings.

4. Close the PLC Settings dialog box.

Item Setting

Communication Settings Custom

Baud 9600bps

Format 8, 1, E

Mode Serial Gateway Mode

Response Timeout 0 (Default)
