A-4 CP1L Programming Examples
152 SYSMAC CP1L Getting Started Guide
Appendix

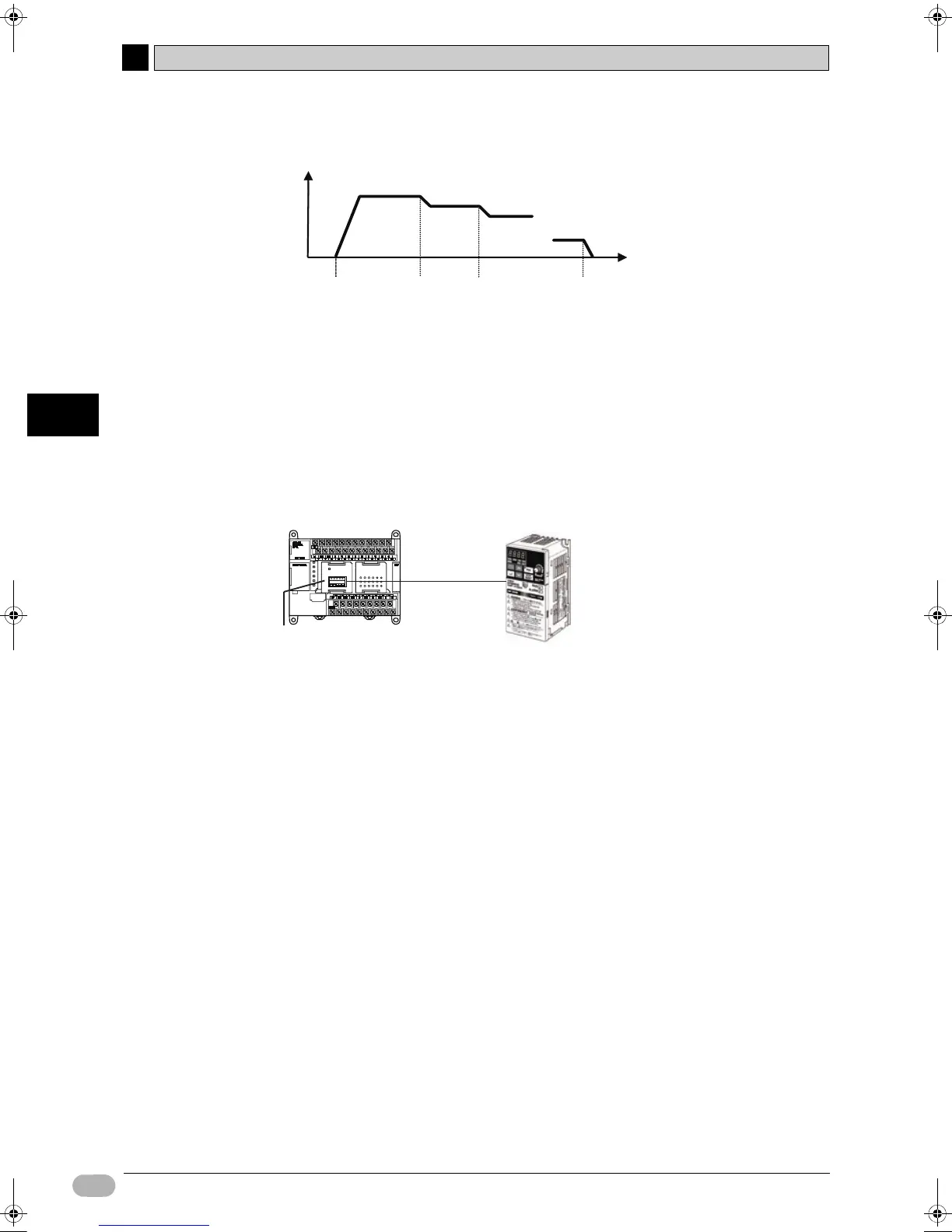

 Operation Overview
The example for A-4-7 Using Inverters for Speed Control (1) will be used again.
The target speed is achieved based on input from multiple contacts. Acceleration
and deceleration is modified by the acceleration and deceleration of an inverter.
 System Configuration
The system configuration for A-4-7 Using Inverters for Speed Control (1) will be
used again.
CP1L and CIMR-V7 (an OMRON inverter) are connected by RS485 for frequency
and start/stop control.
In this FB library example, capacity of the user memory may exceed 5K steps.
For this reason, since a memory capacity error may occur on a 14/20-point CP1L
(with a user memory of 5K steps), use a 30/40-point CP1L (with a user memory of
10K steps) for this example
For details on wiring, and on the settings for CP1W-CIF11, CIMR-V7, and CP1L,
refer to System Configuration of A-4-7 Using Inverters for Speed Control (1).
Speed
Contact A
ON
Contact B
ON
Contact C
ON
Contact Z
ON
60.00Hz
55.00Hz
50.00Hz
Stopped
(W0.00)
(W0.01)
(W0.02)
(W0.15)
COMM
RD-A RDB+ SD-A SDB+ FG
CP1L
CP1W-CIF11
(RS422/485 option board)
RS485
CIMR-V7
W07E-EN-02+CP1L+GettingStartedGuide.book Seite 152 Montag, 15. September 2008 11:15 11
