A-4 CP1L Programming Examples
154 SYSMAC CP1L Getting Started Guide
Appendix

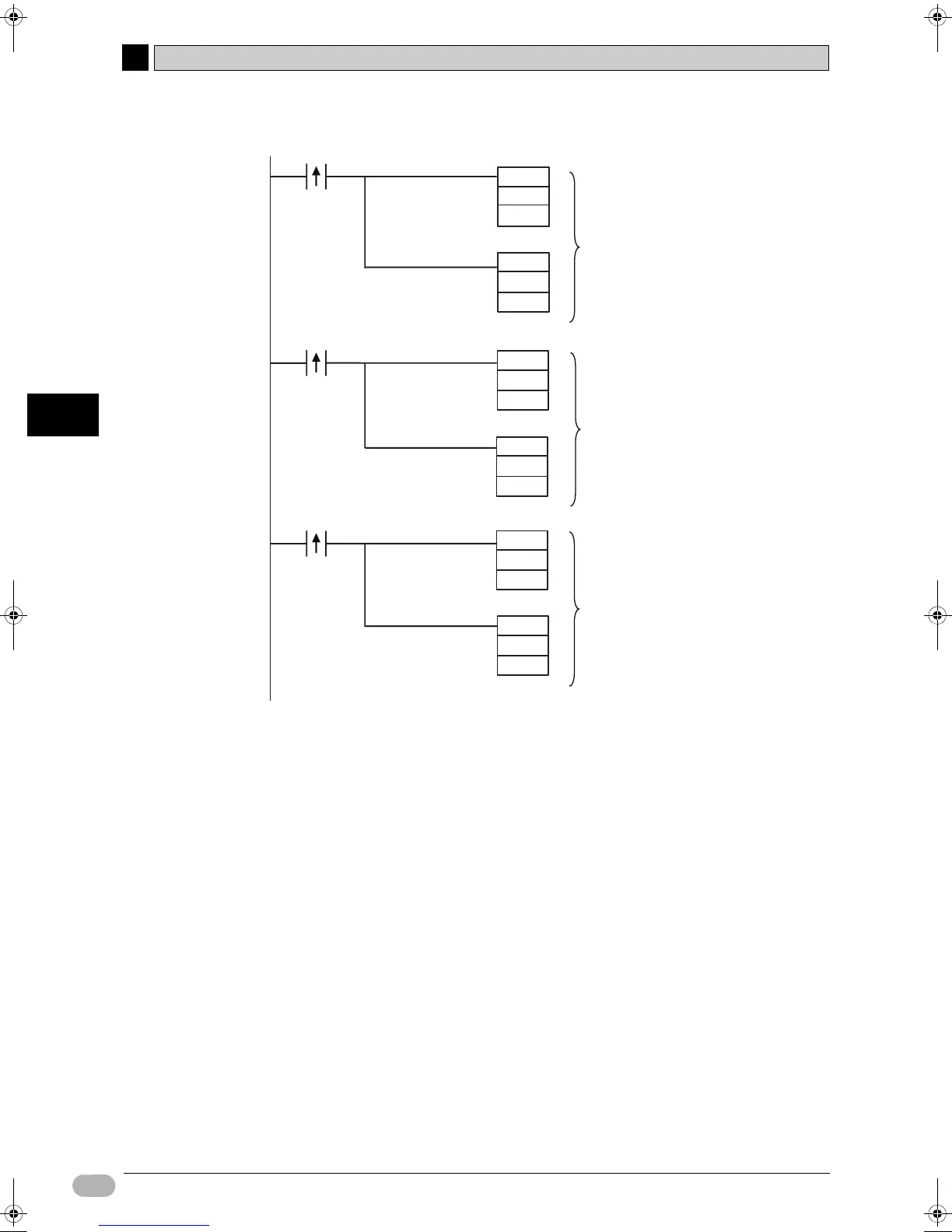

zLadder Program
MOV(021)
D100
#1770
MOV(021)
D2
#0
MOV(021)
D100
#157C
D2
#0
MOV(021)
D100
#1388
MOV(021)
D2
#0
W0.00
Contact A
W0.01
Contact B
W0.02
Contact C
Frequency command
60.00Hz(1770 Hex)
Rotation direction Normal (0)
Frequency command
55.00Hz(157C Hex)
Rotation direction Normal (0)
Frequency command
50.00Hz(1388 Hex)
Rotation direction Normal (0)
